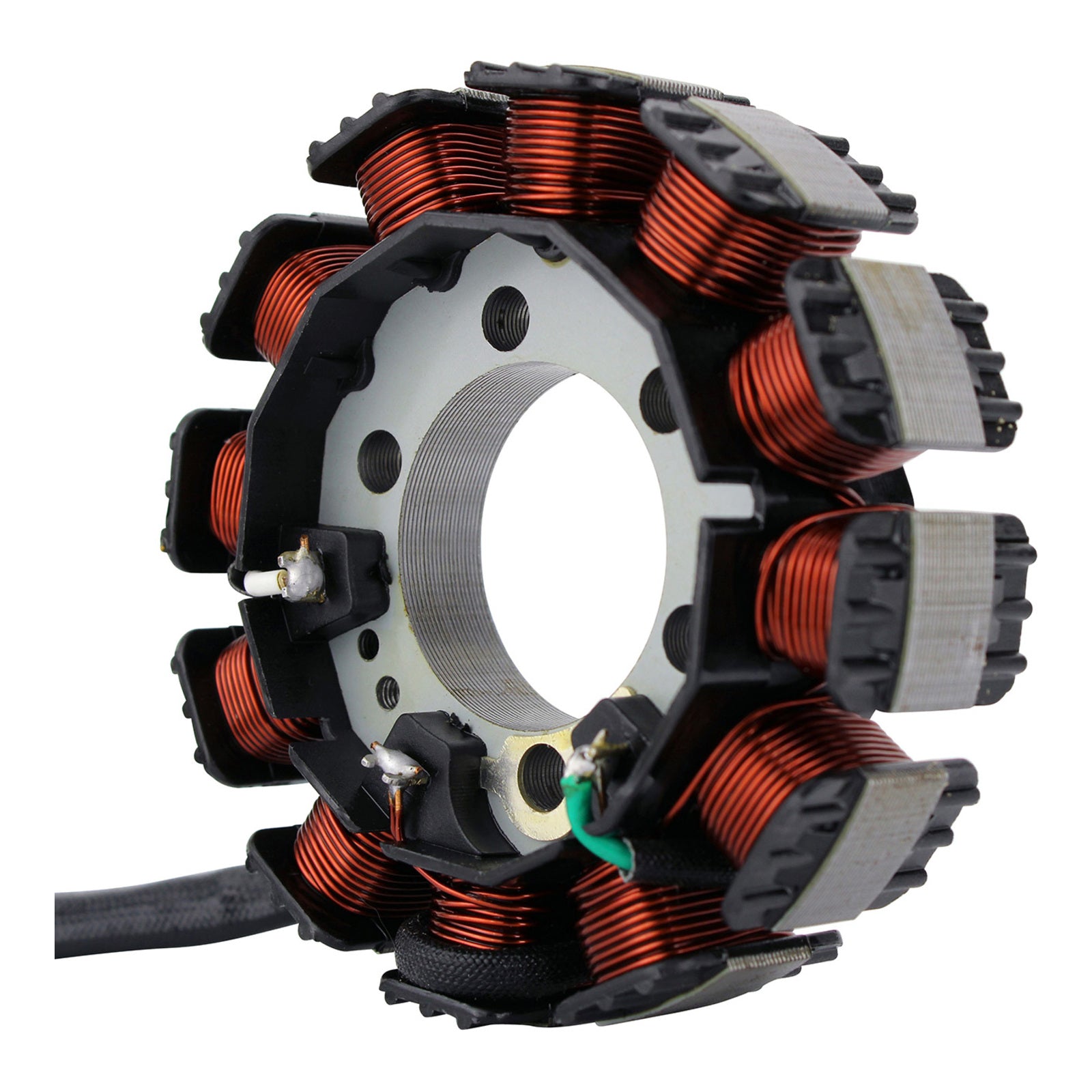

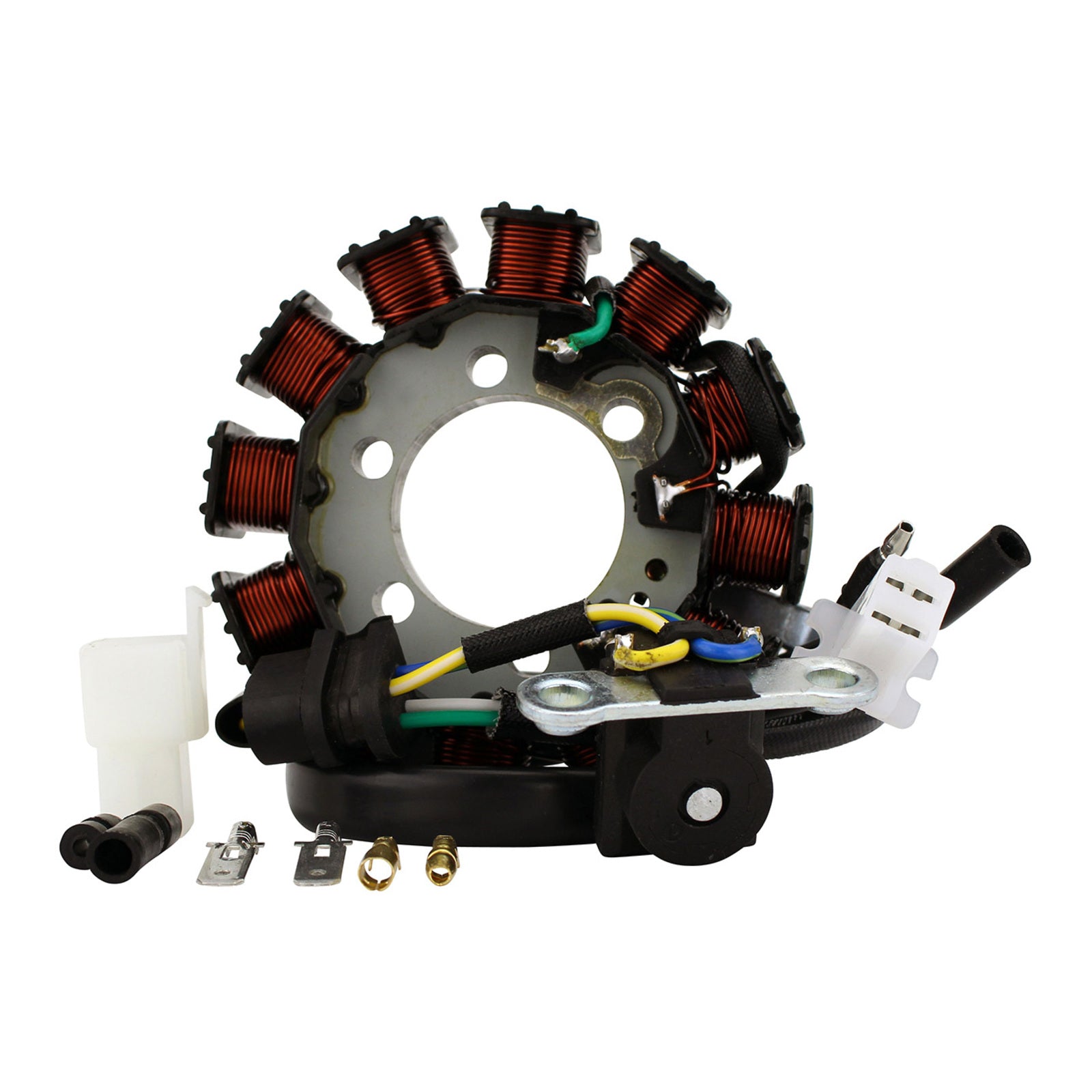

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 4
• Number of plugs : 3
• Number of pins: 4
• Number of poles: 12

Wire-to-wire resistance:

Alternator: = White to Green 0.8 ohms +-20%
Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20
