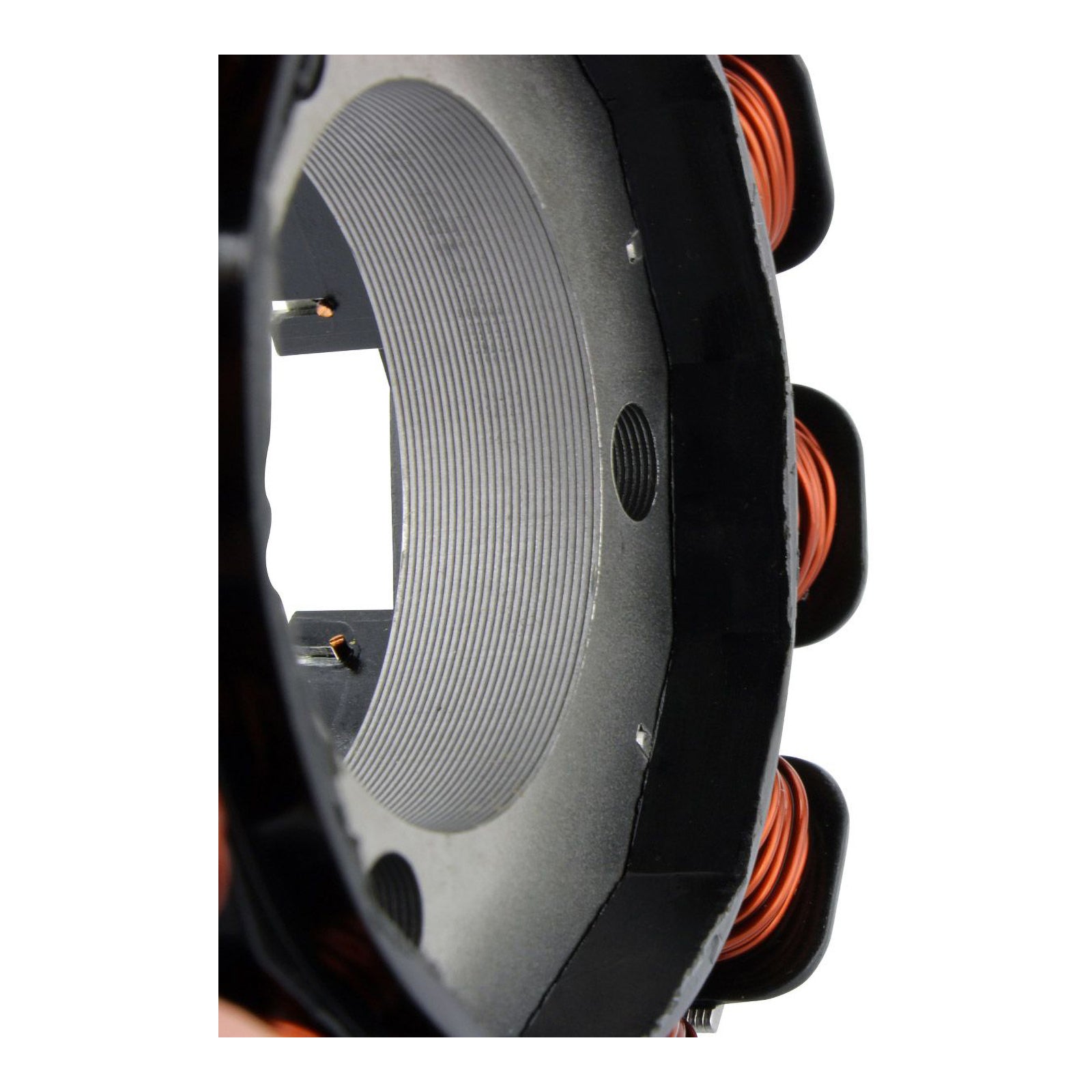

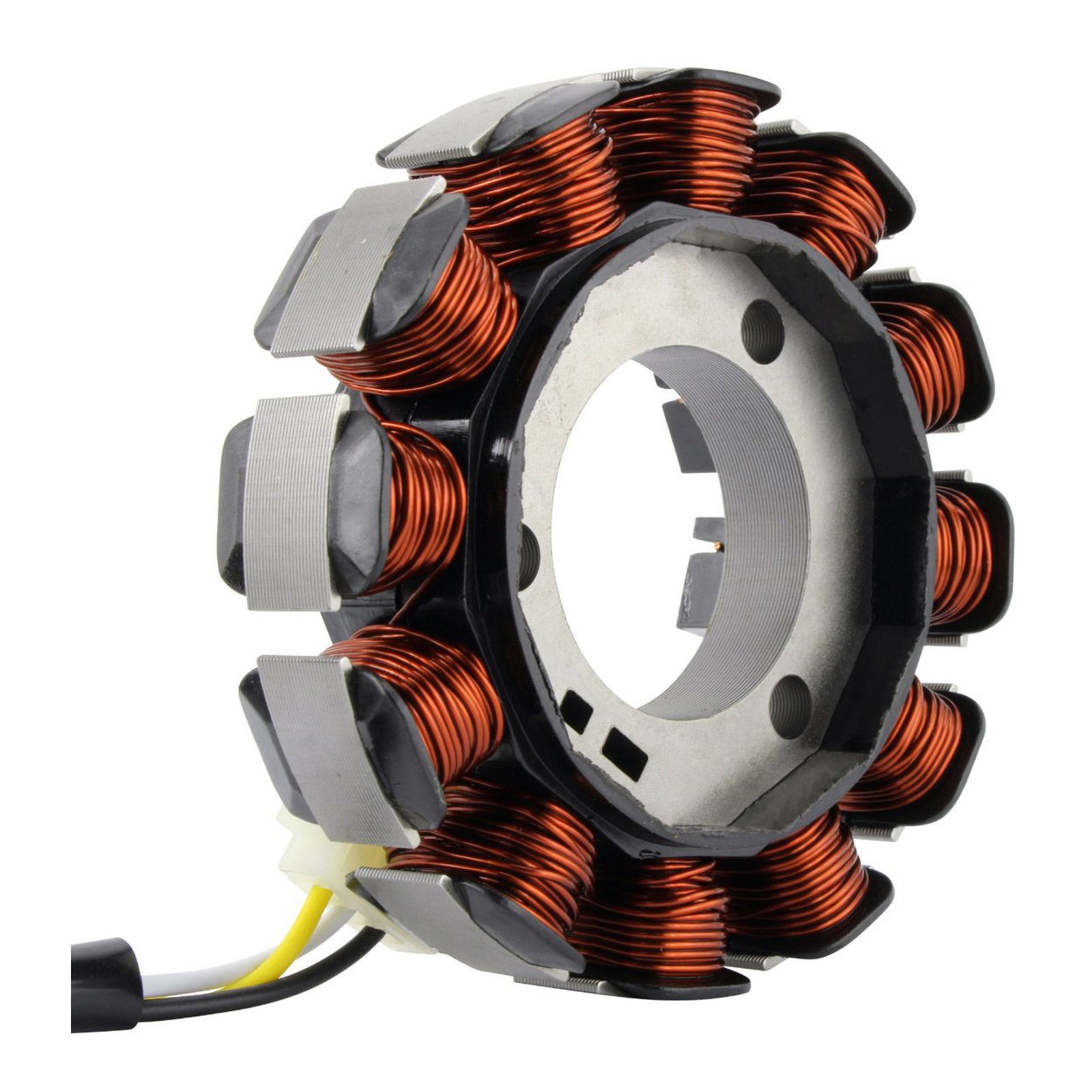

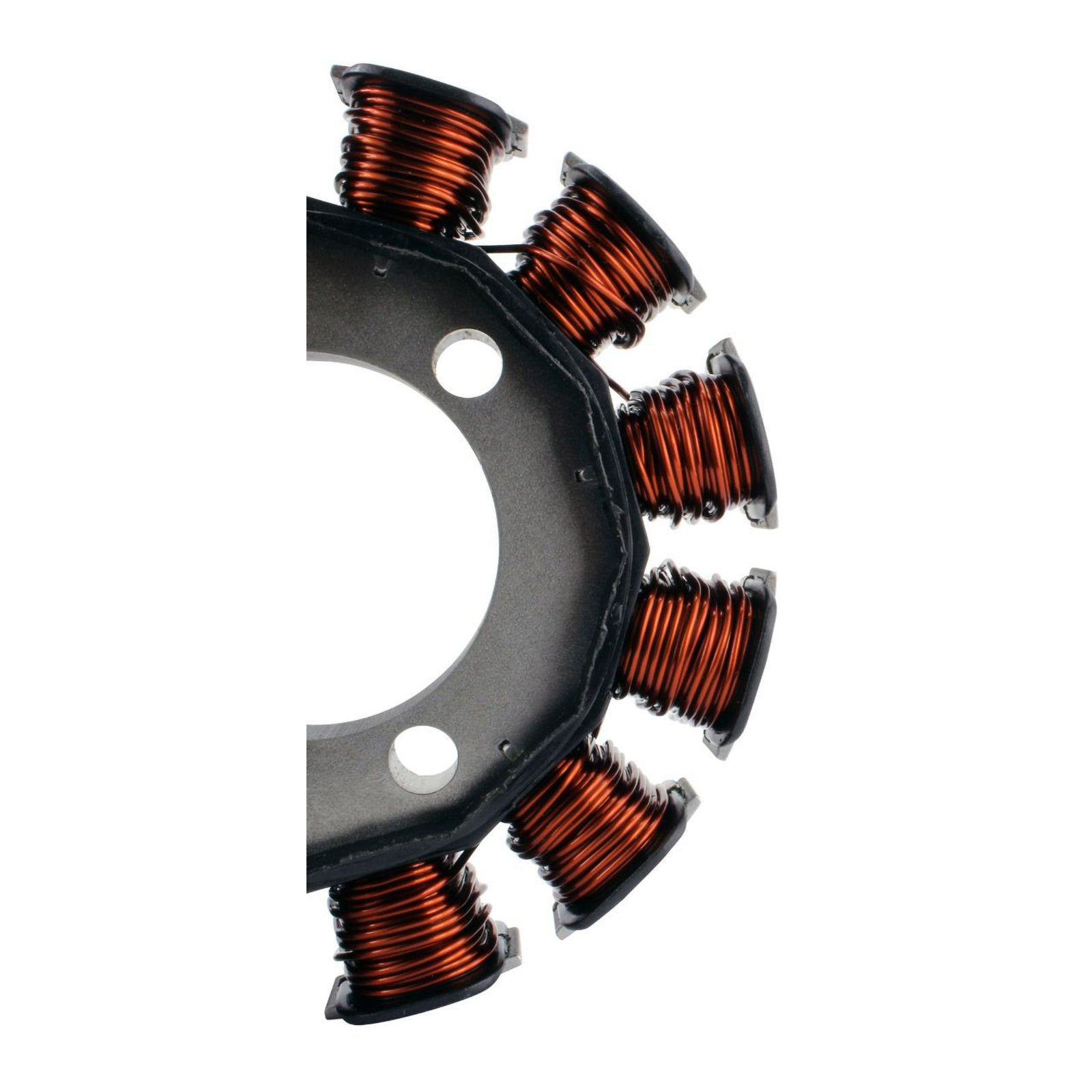

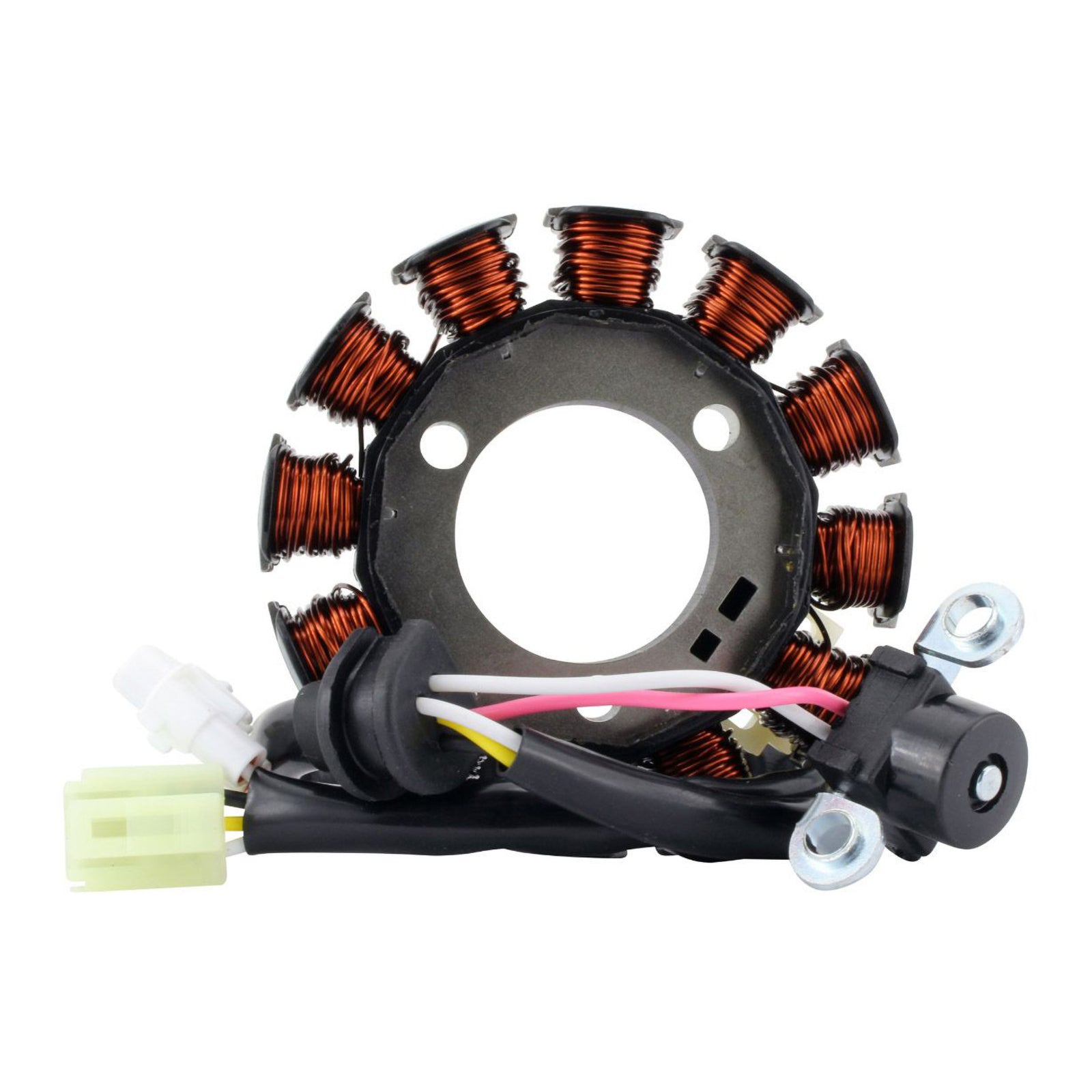

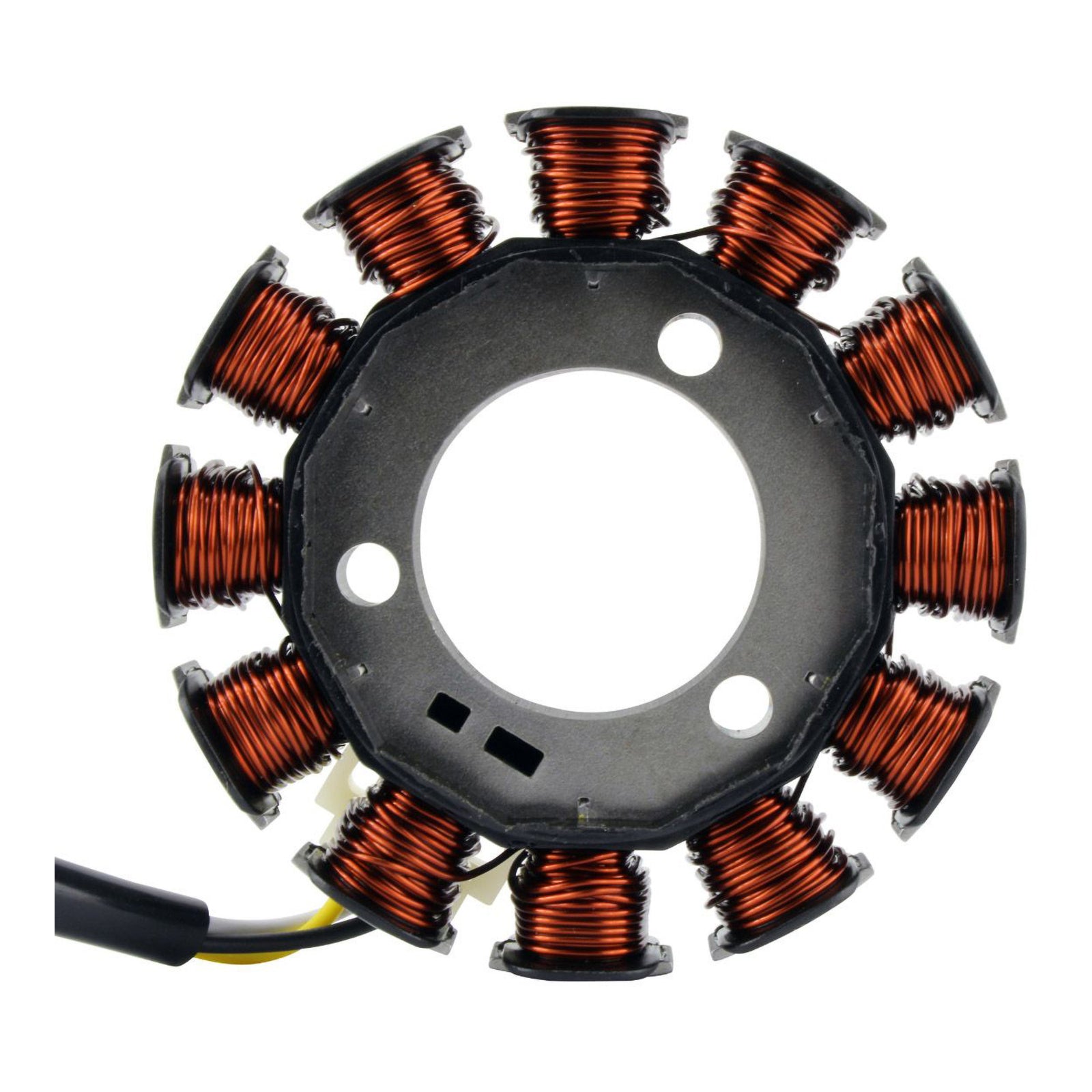

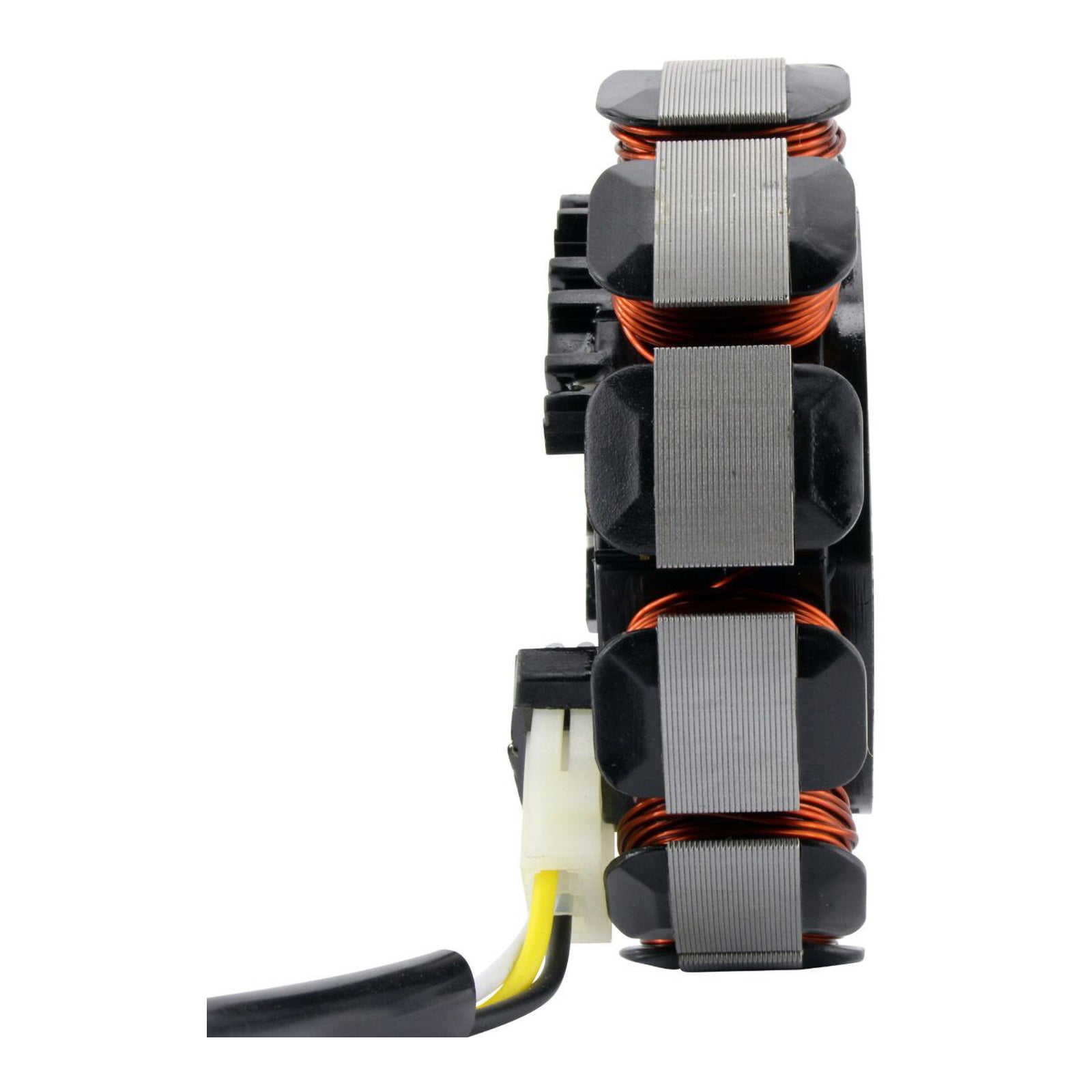

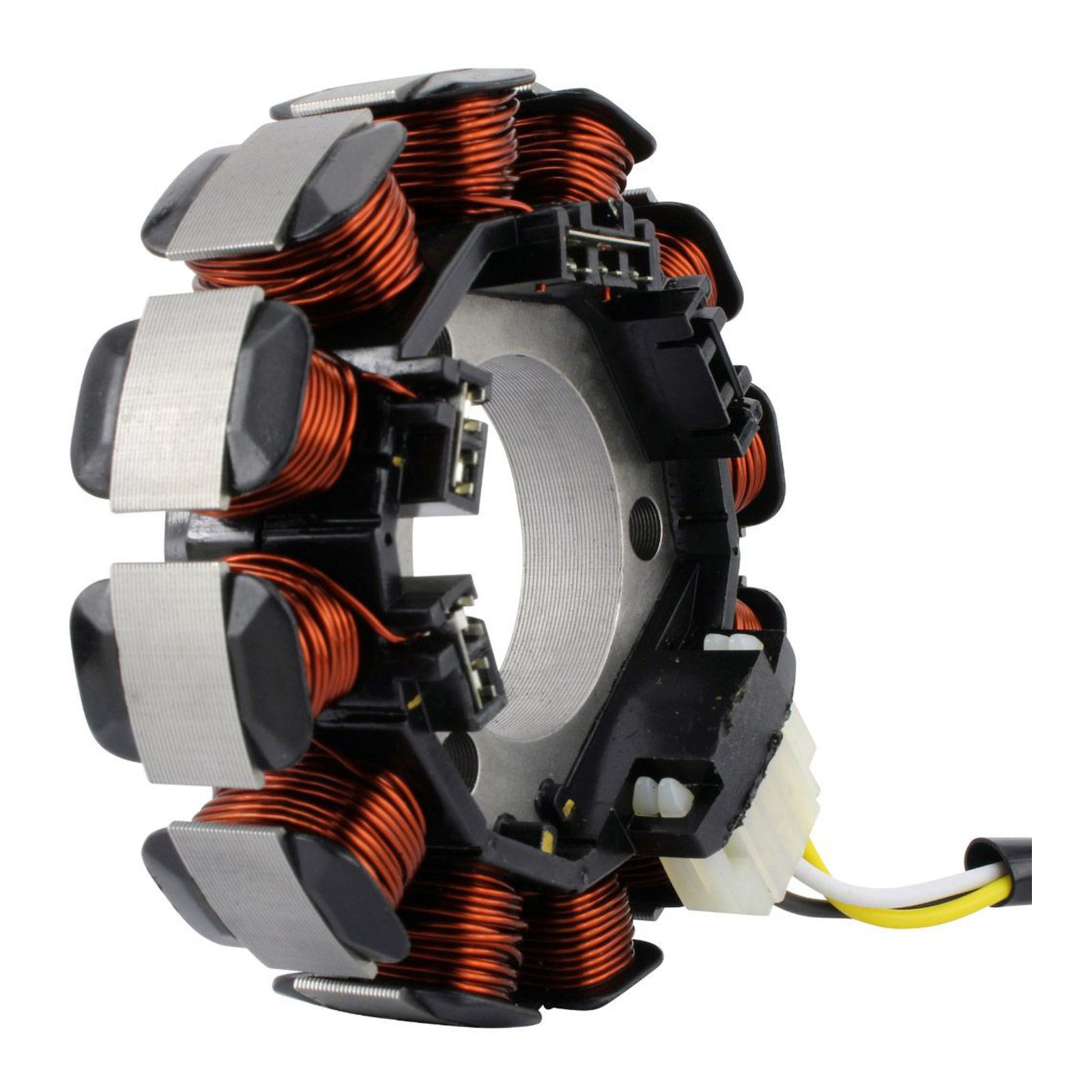

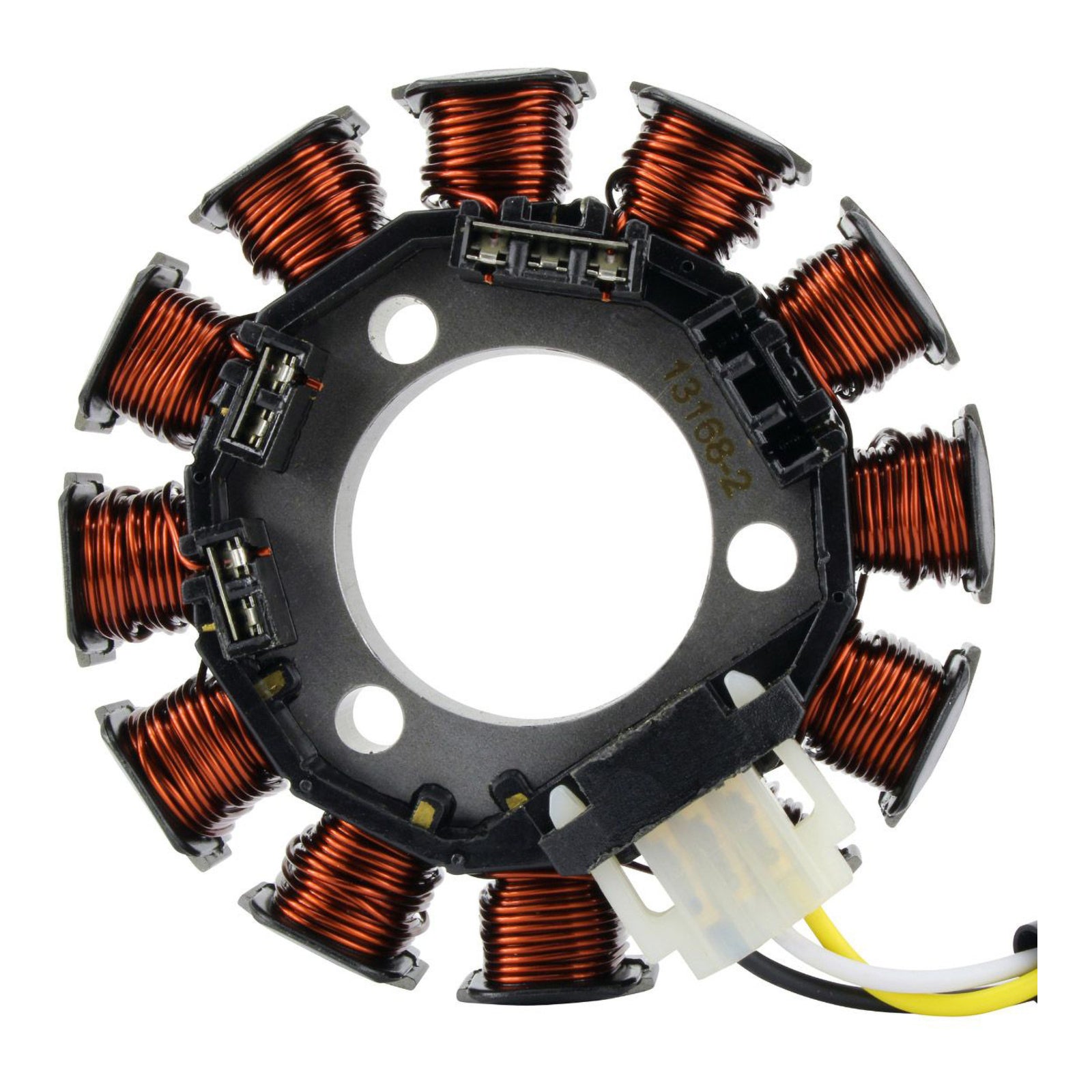

GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.

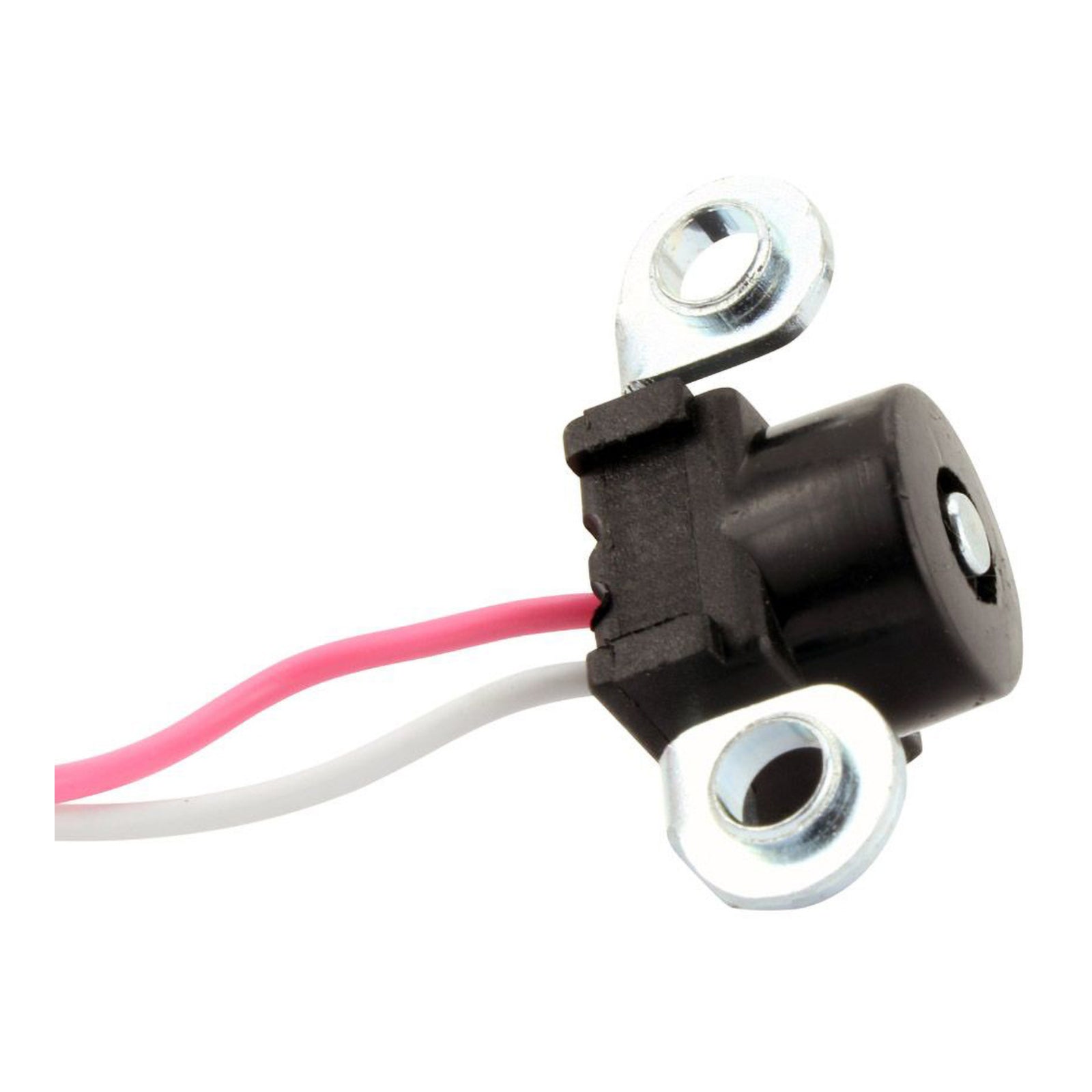

• Pick up pulsar coil included

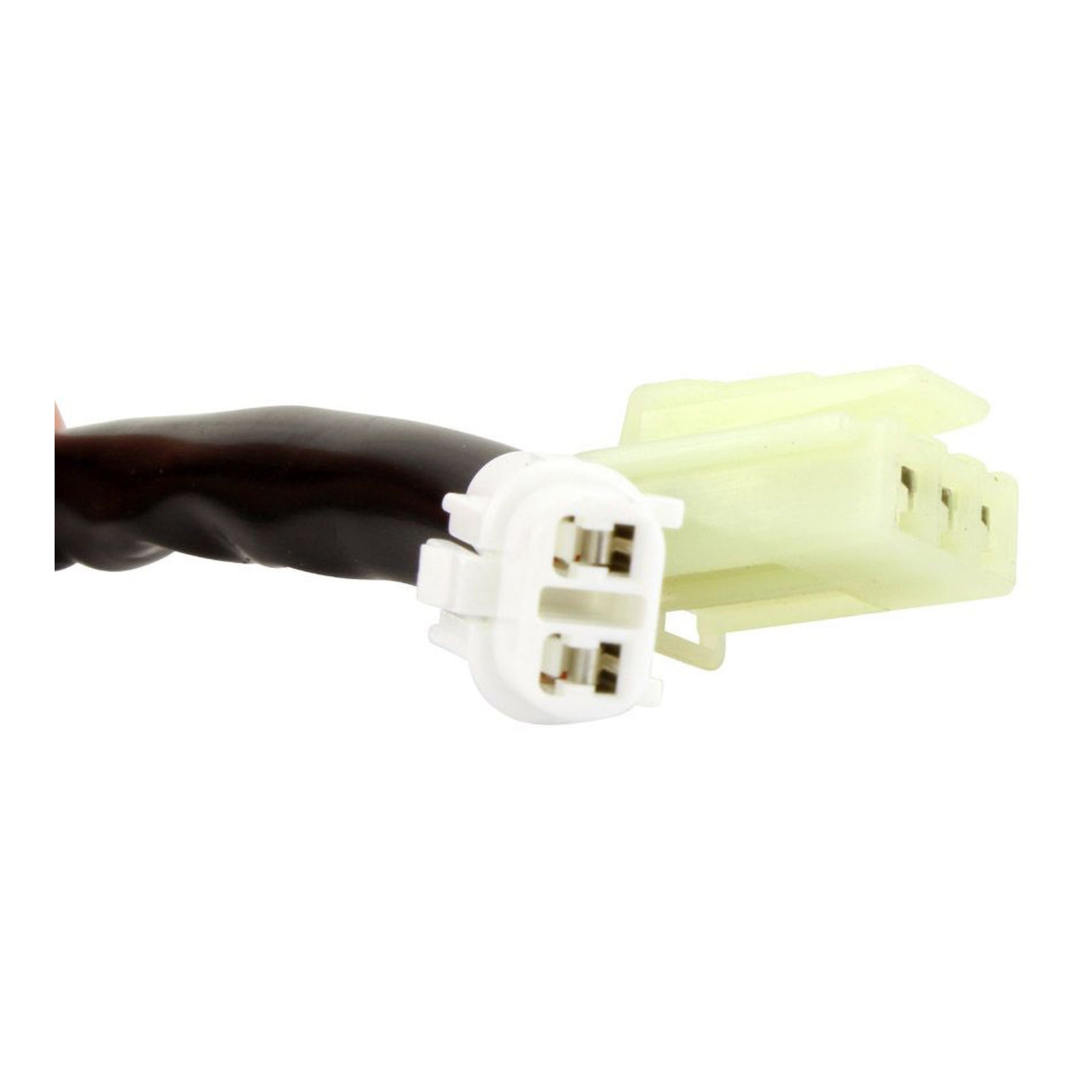

• Connector included

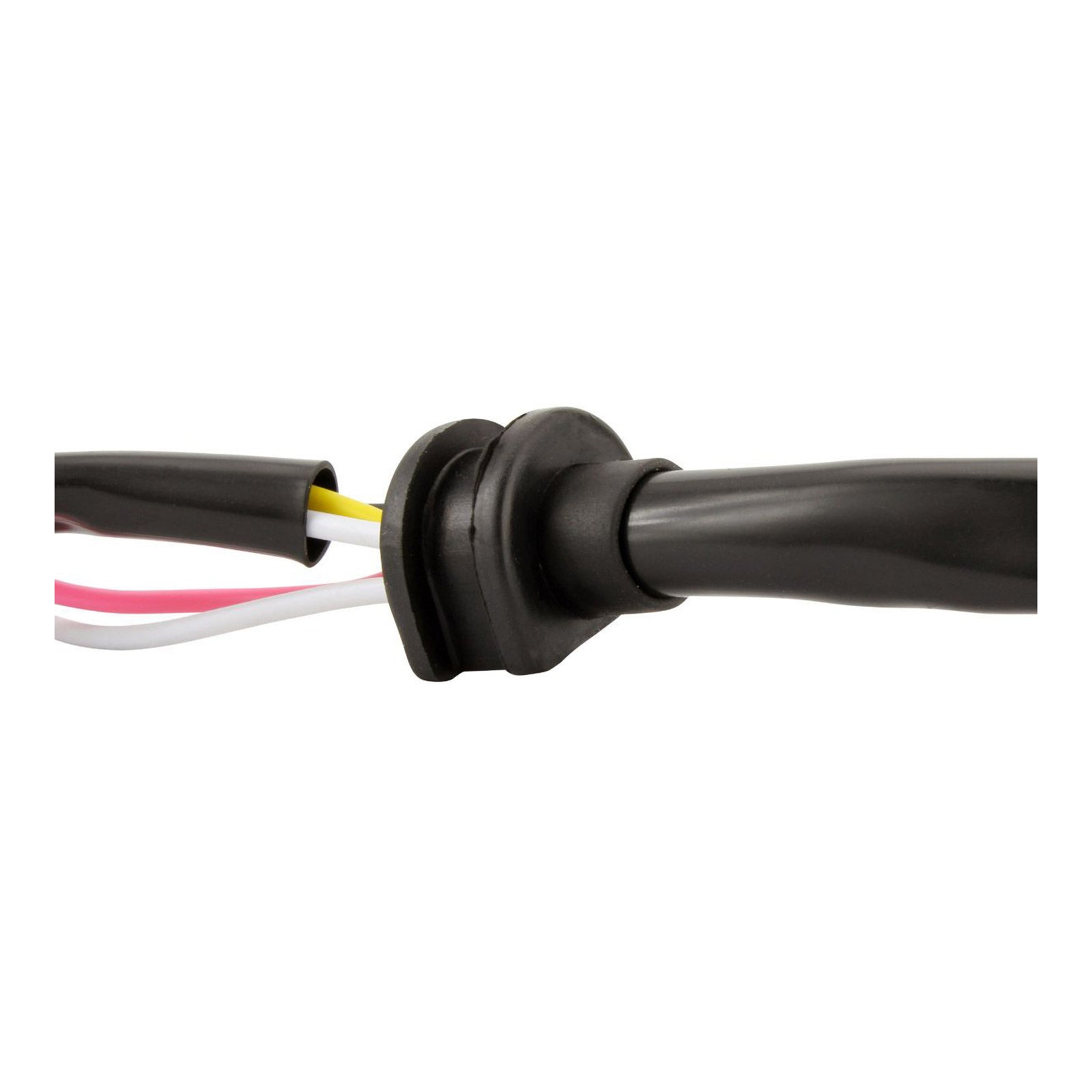

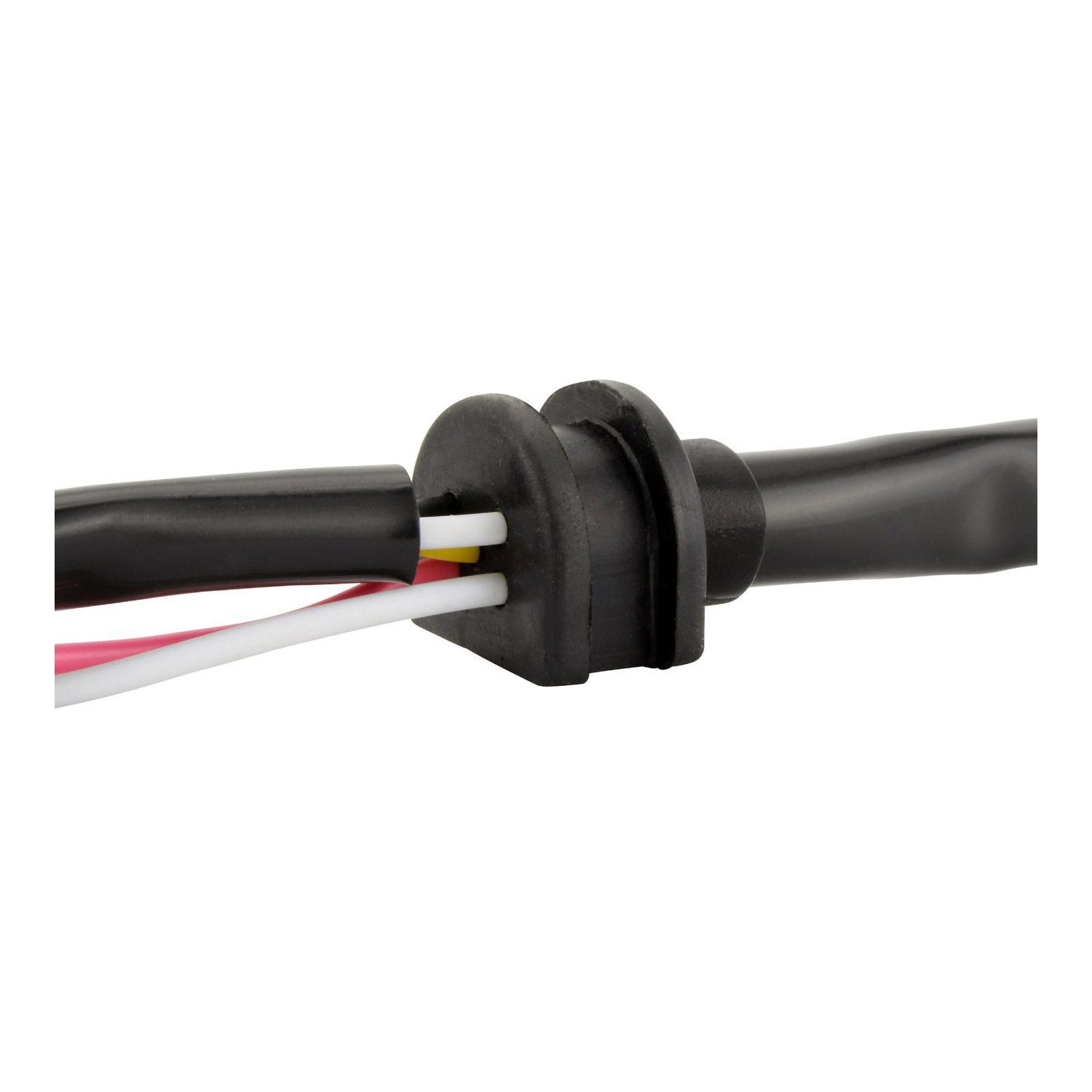

• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 12

Wire-to-wire resistance:

• All 1p winding: Black to White = 0.9 ohms +-20%
• Alternator #1: Yellow to Black = 0.6 ohms +-20%
• Alternator #2: Yellow to White = 0.8 ohms +-20%
• Pickup: Pink to White = 280 ohms +-20%
