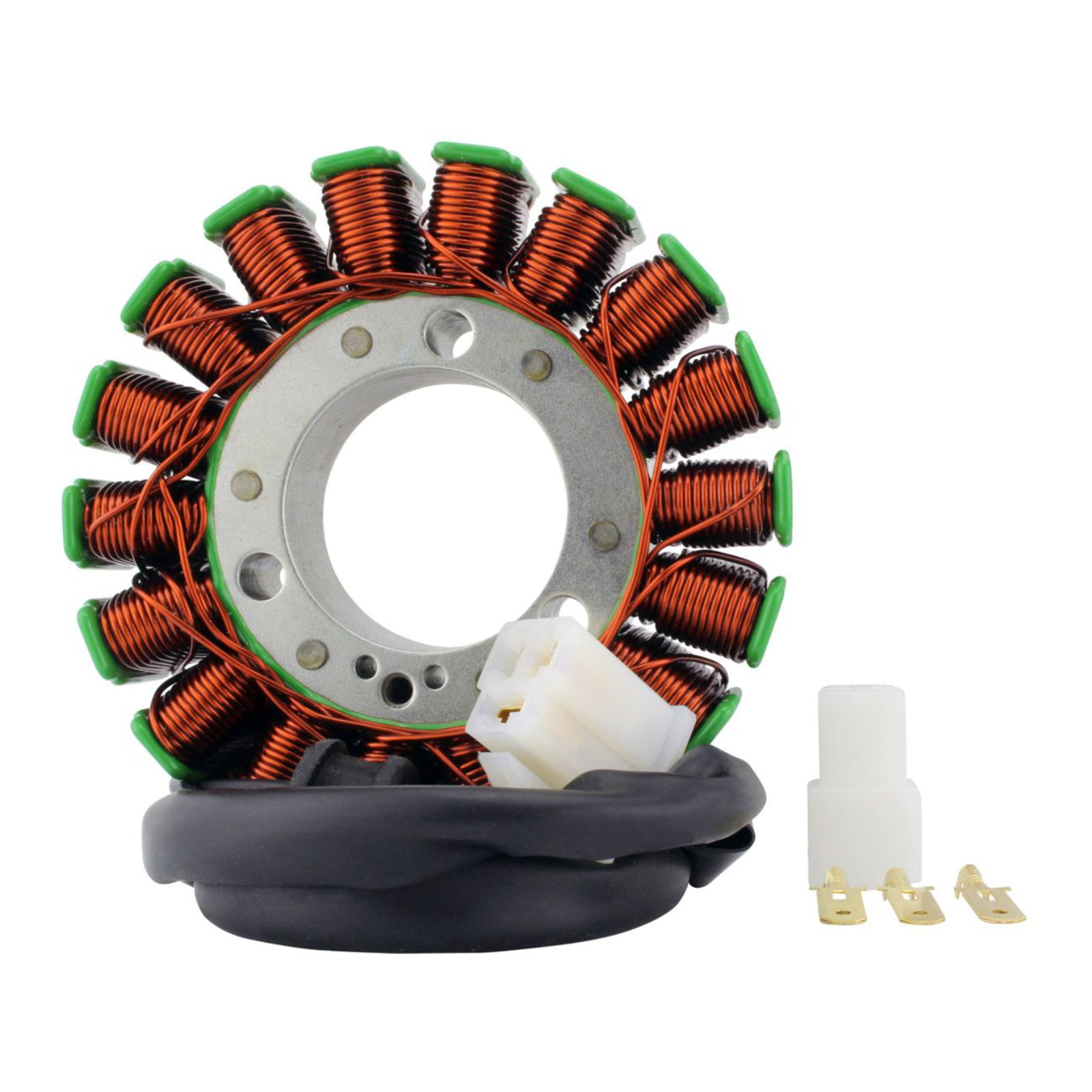

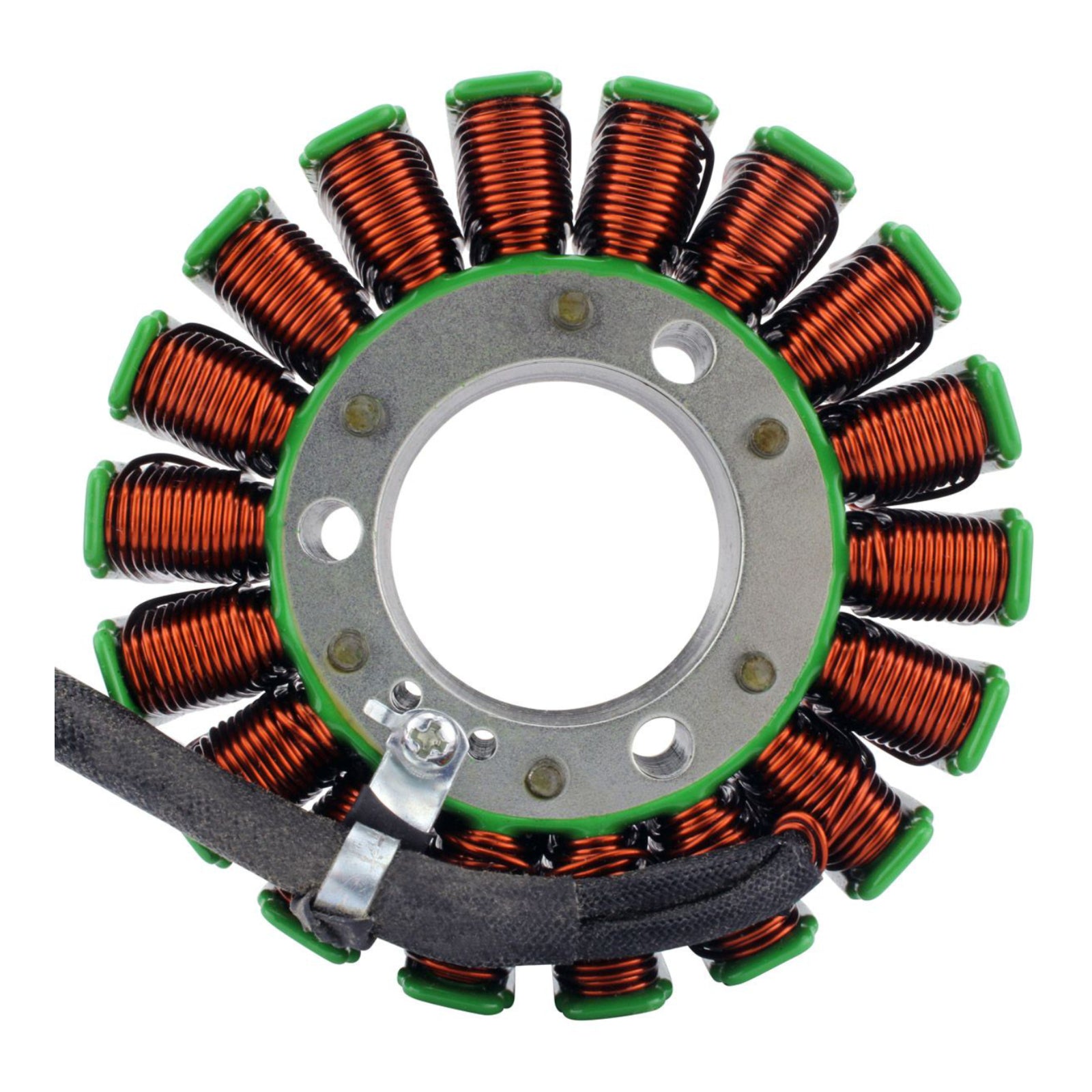

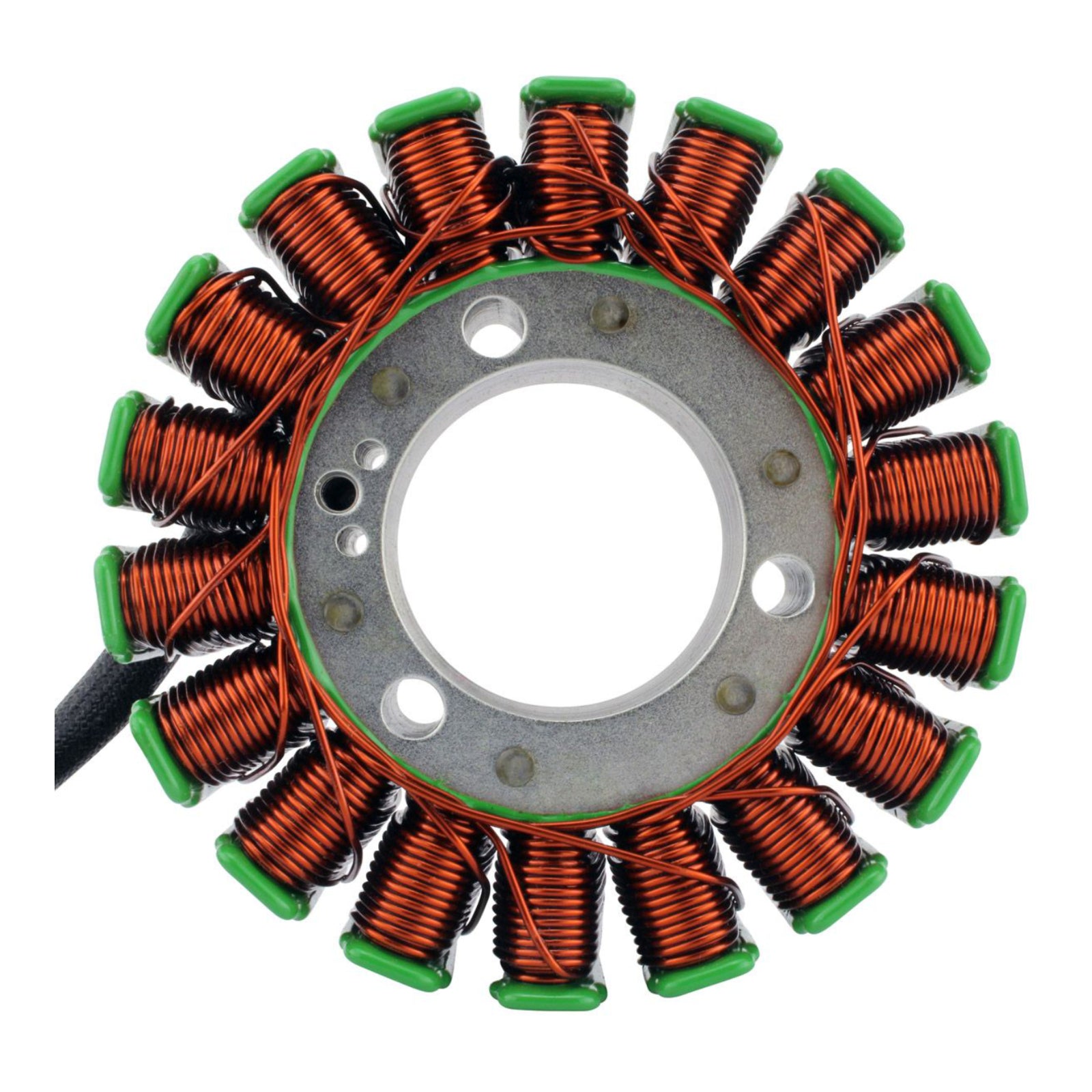

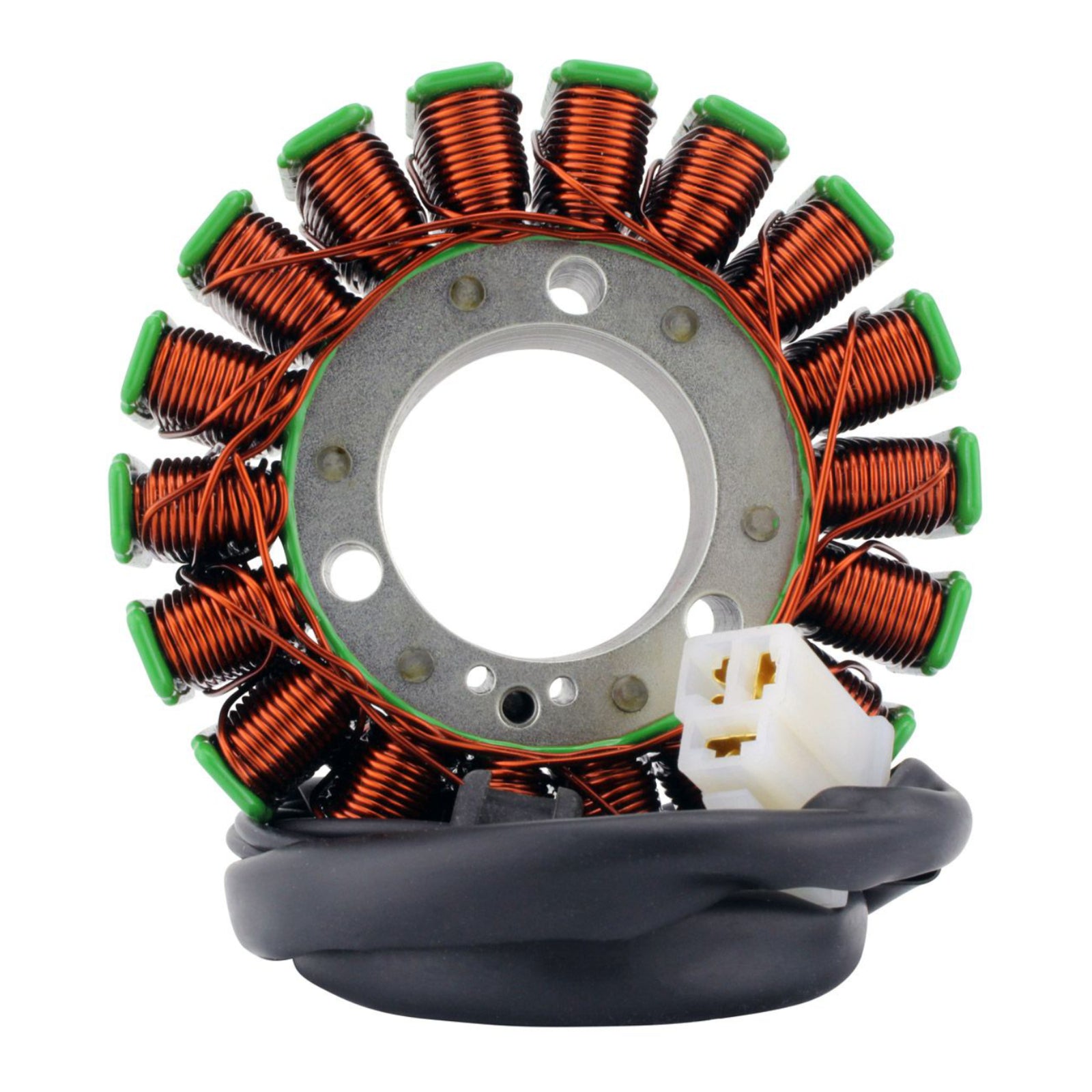

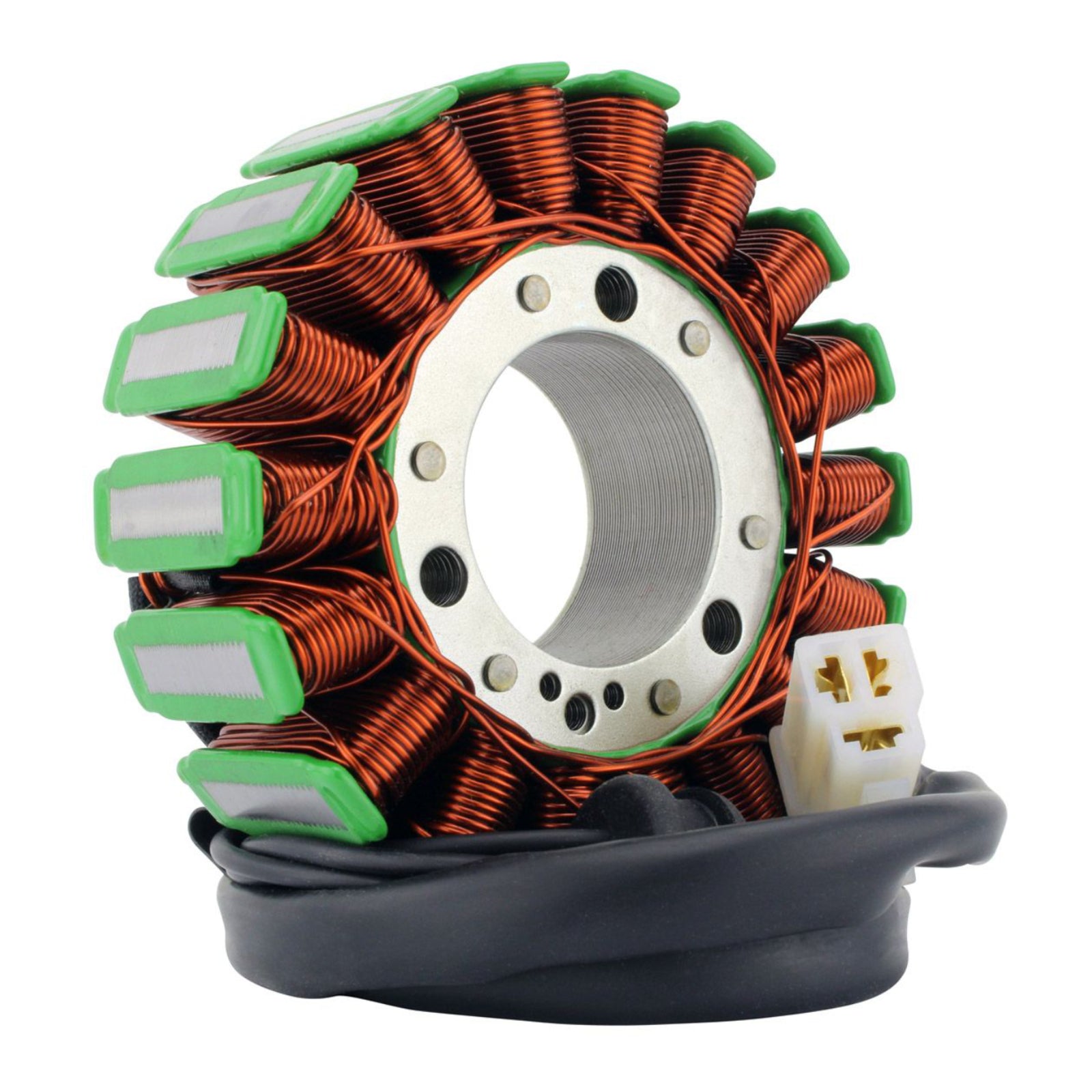

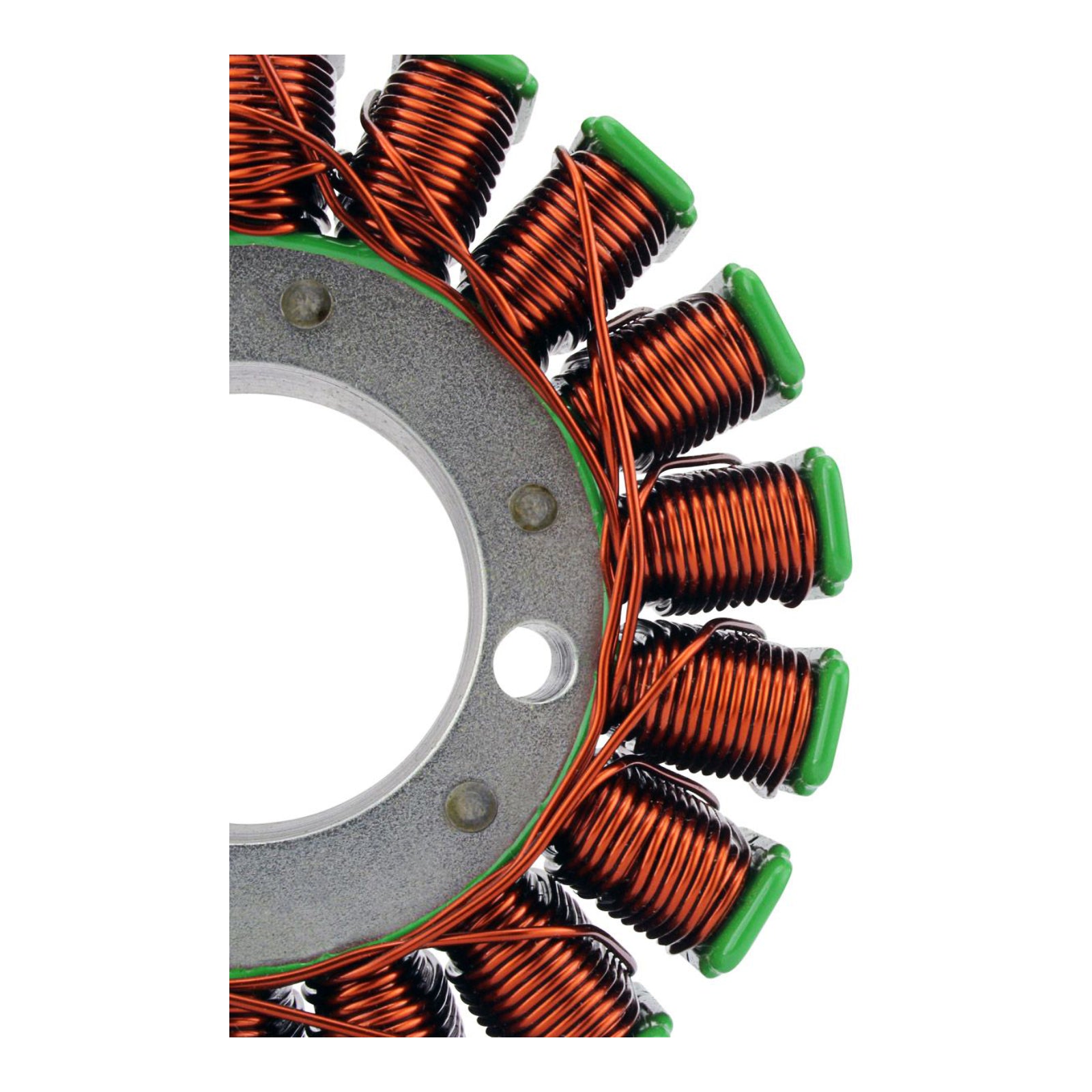

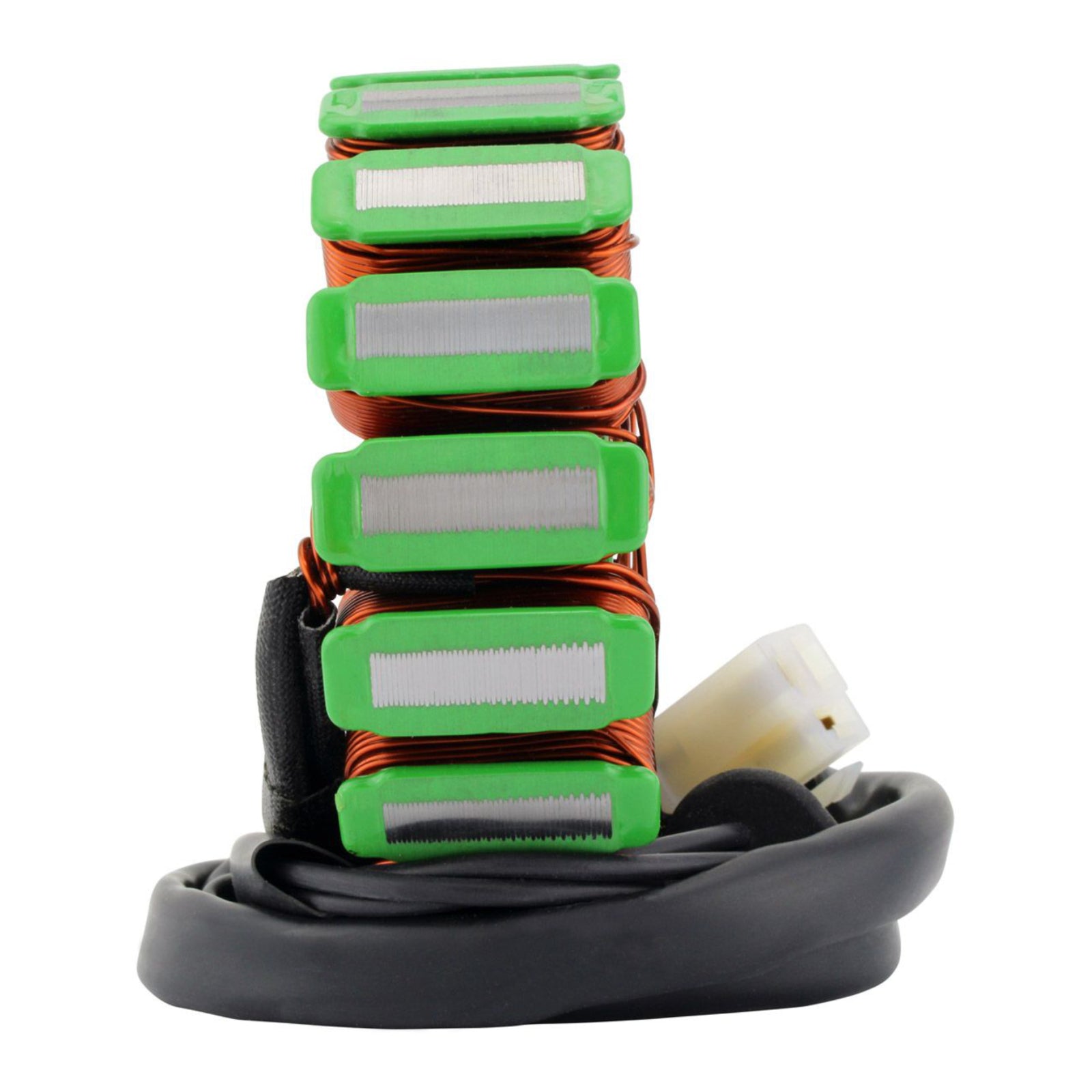

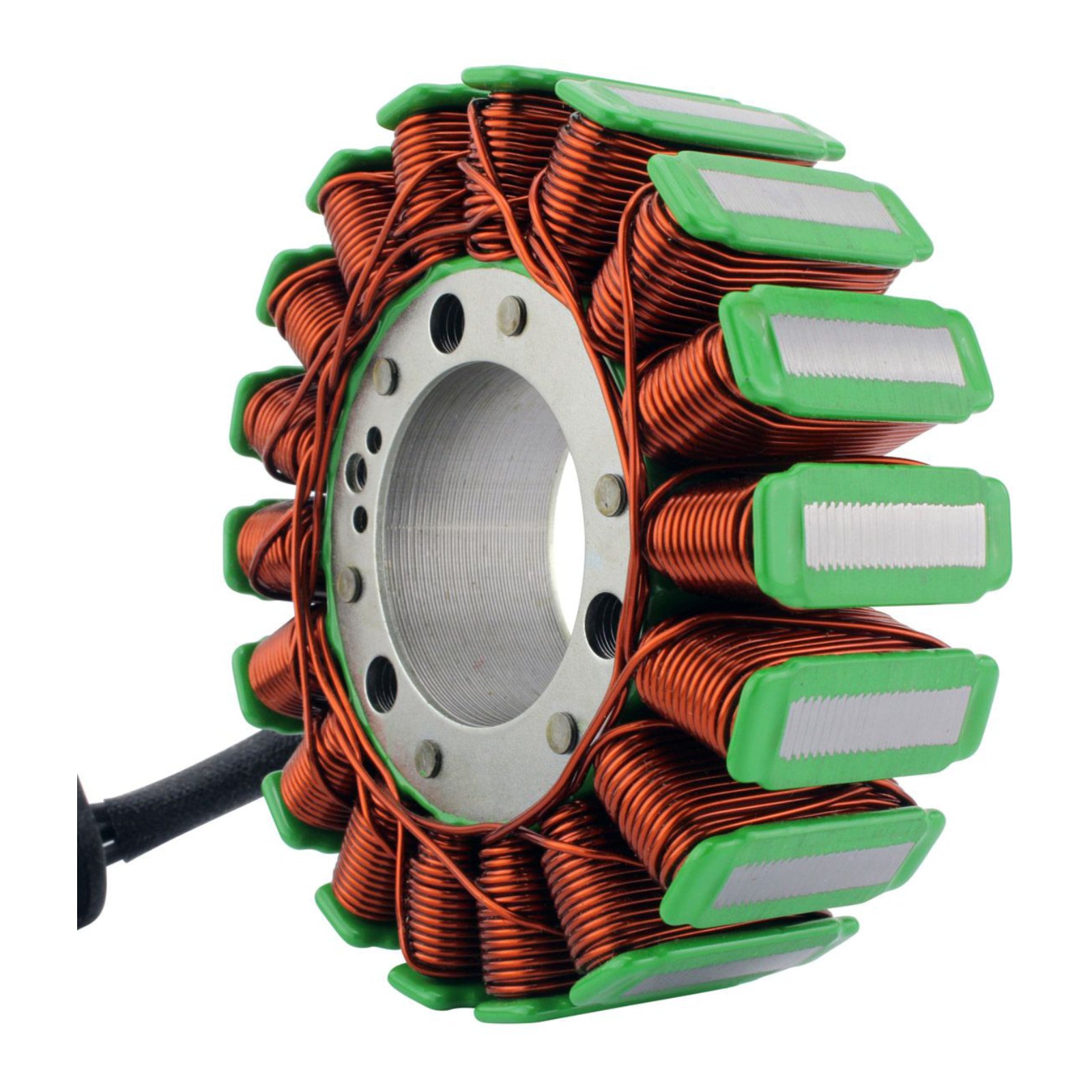

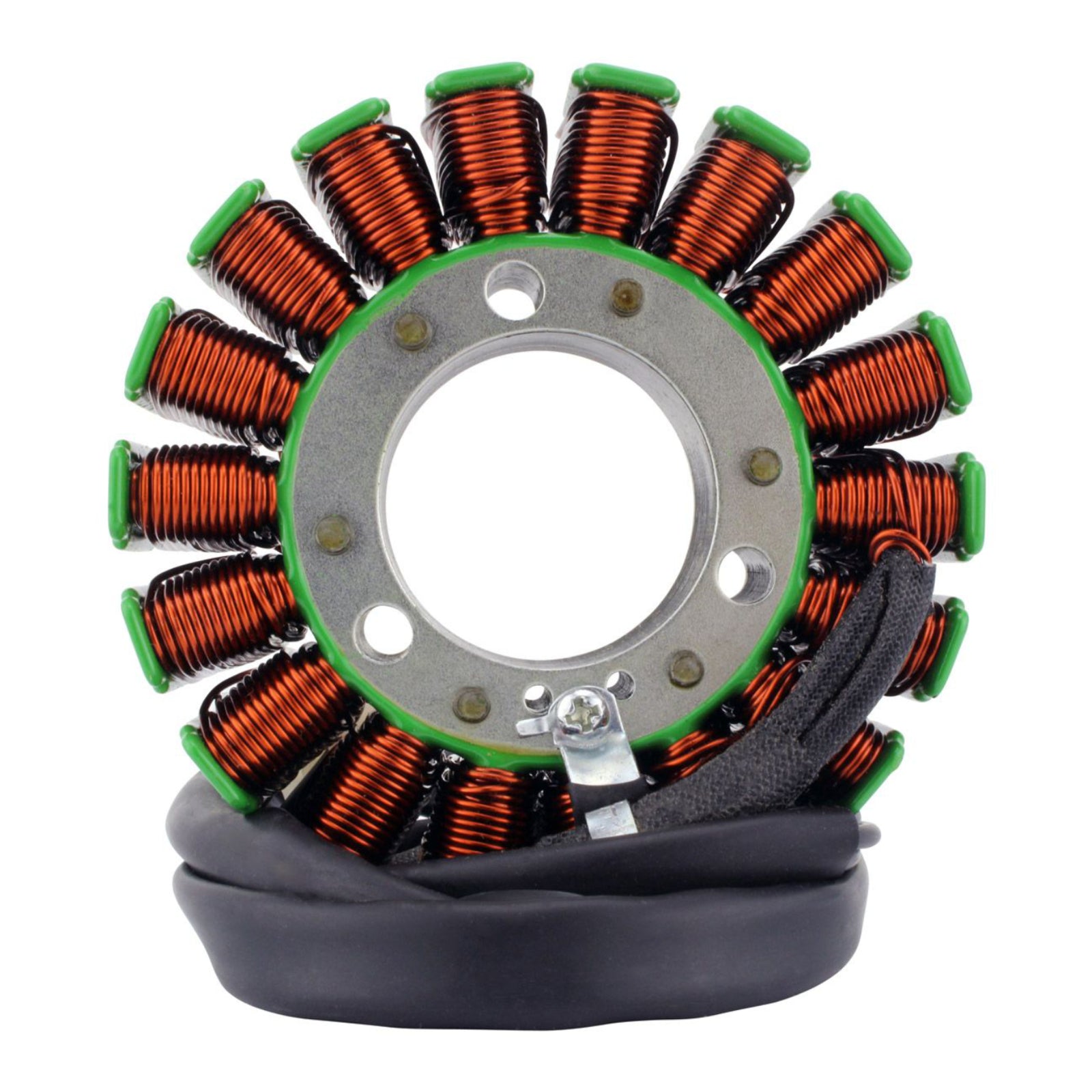

GENERATOR STATOR SUZ GSXR 600 1997-2000/GSXR 750 1996-1999

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

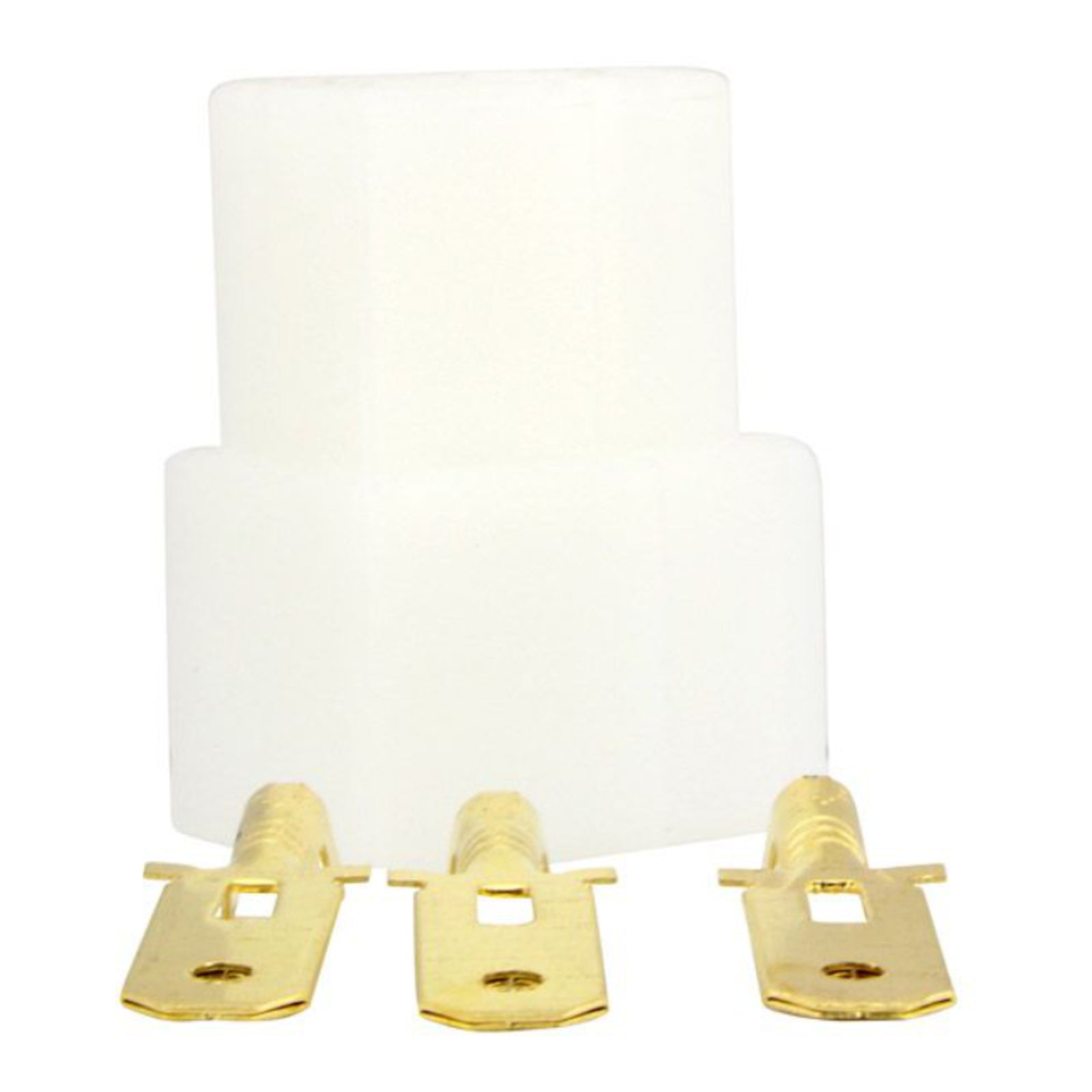

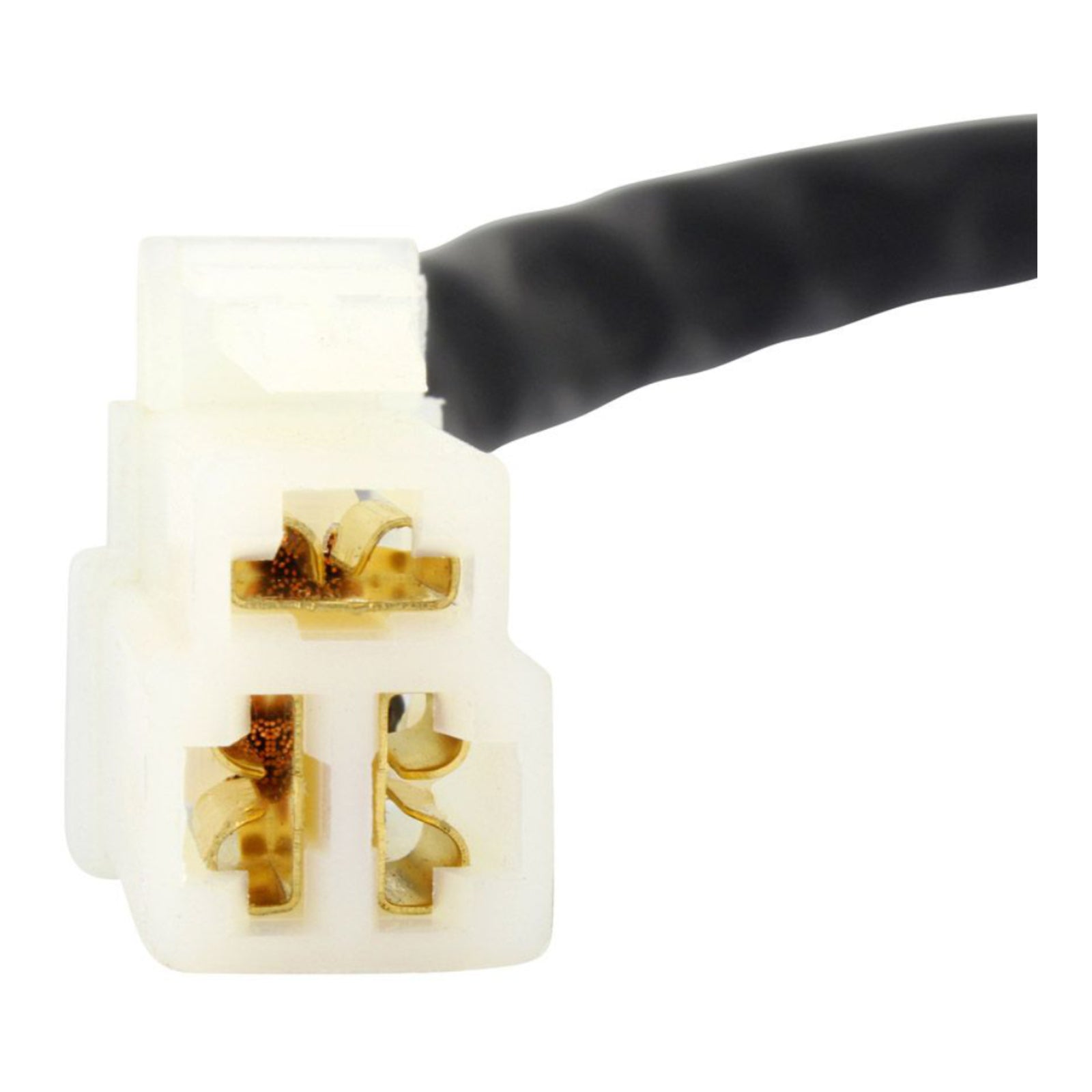

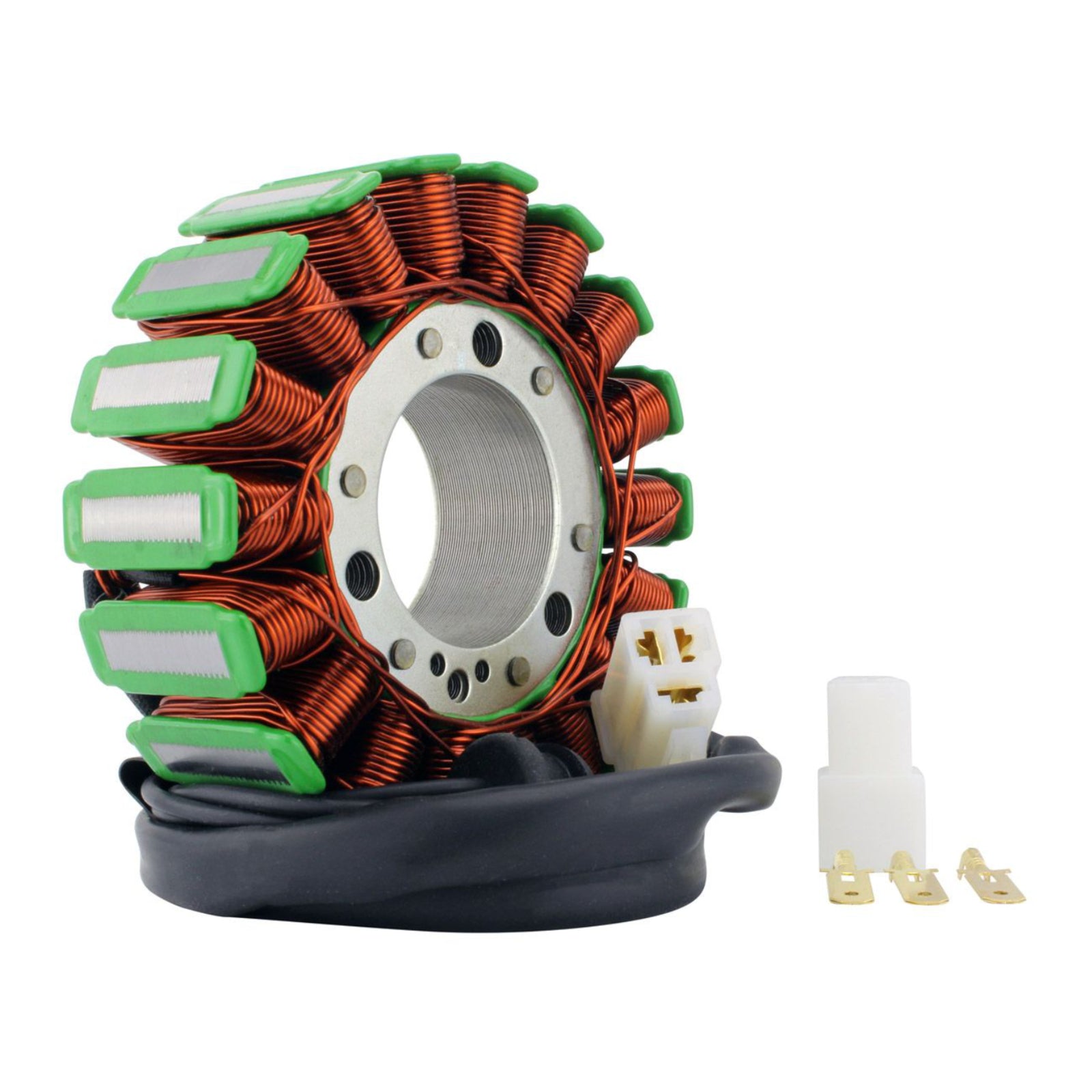

• Connectors included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 99 mm
• Thickness: 27 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 650 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator: Black to Black = 0.6 ohms +-20%
• Alternator to ground = O.L (Open Loop)
