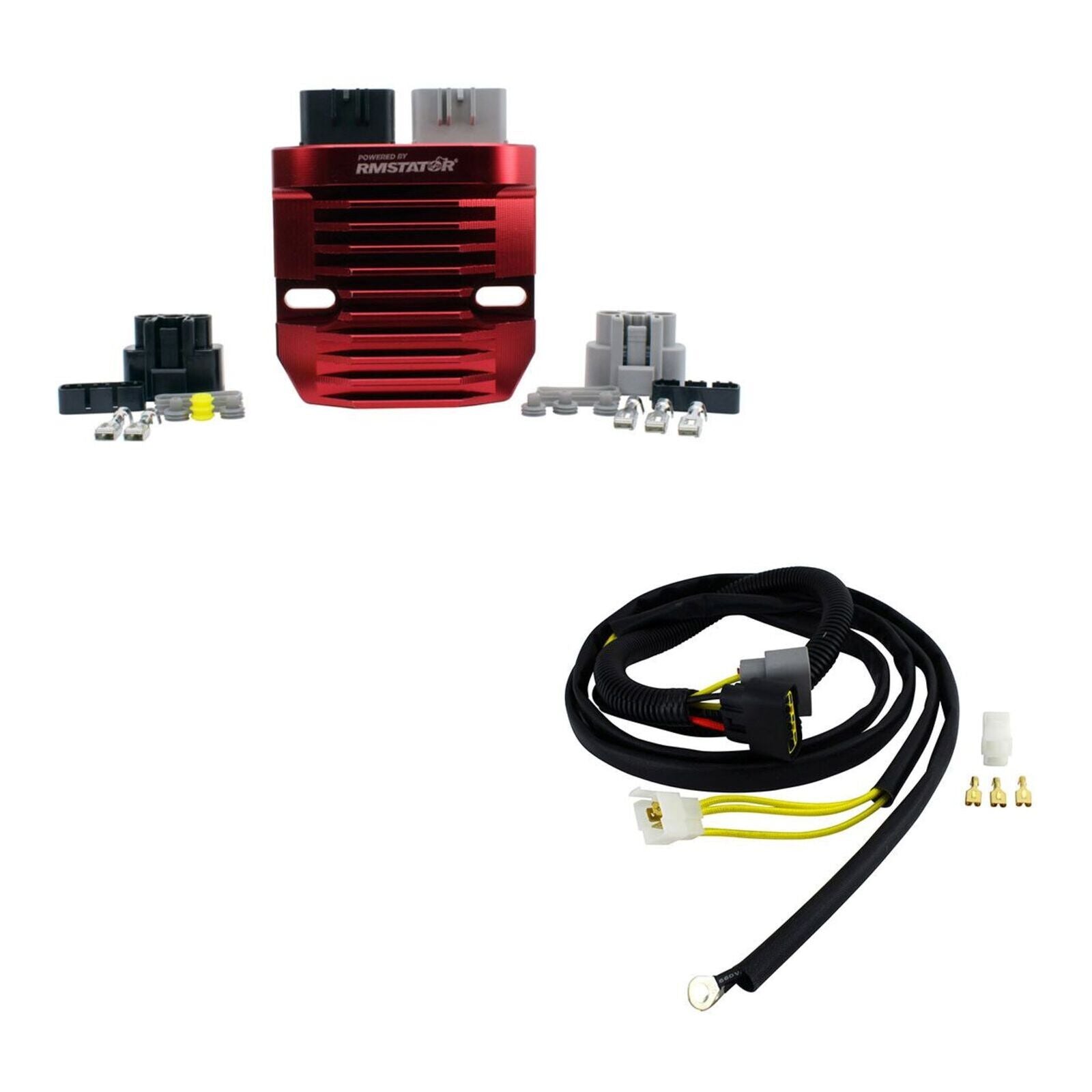

RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

Replaces these OEM Numbers :

• 4011089
• 4011090
• 4011598
• 4011375
• 4011657
• 4011226
• 4011517
4011240

Specifications:

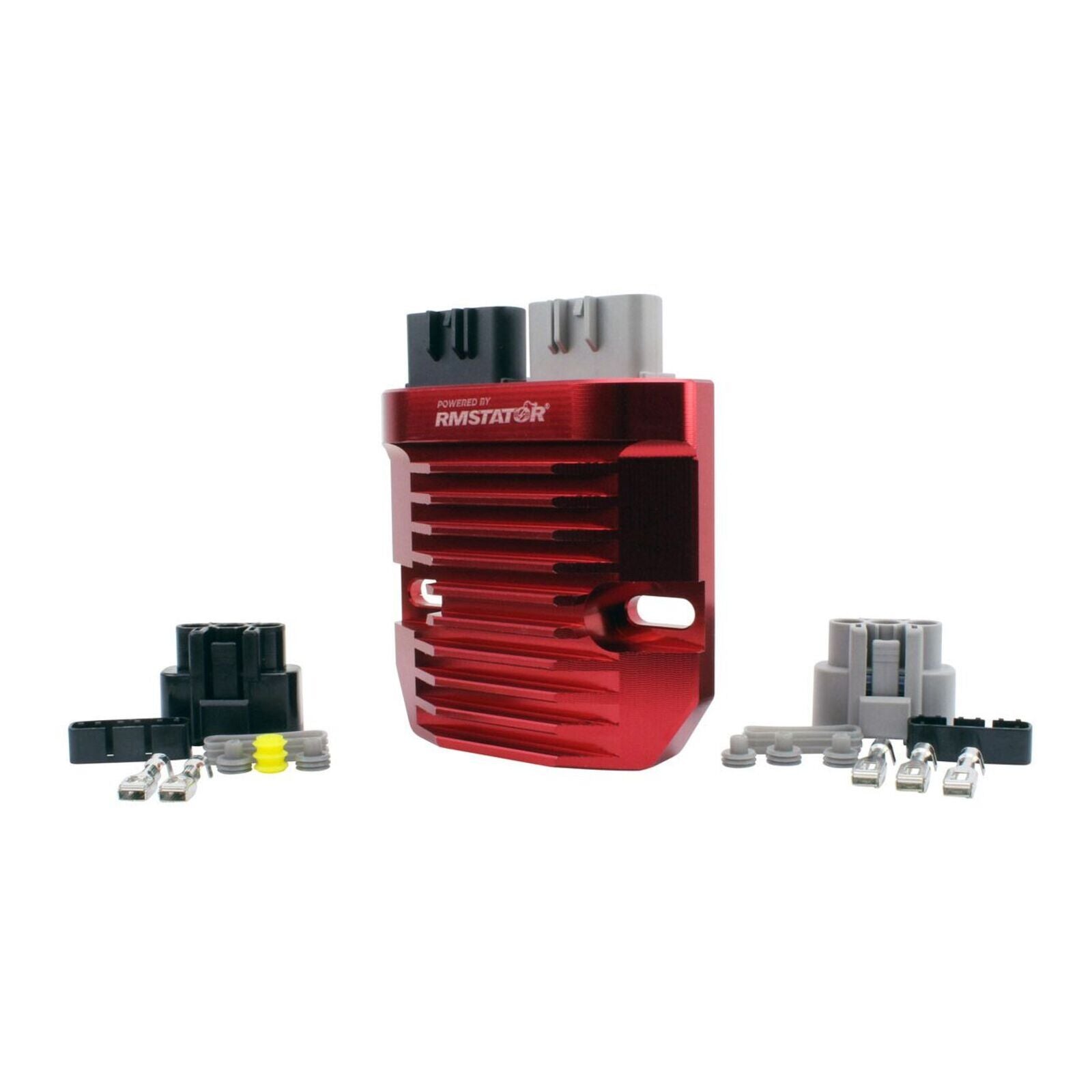

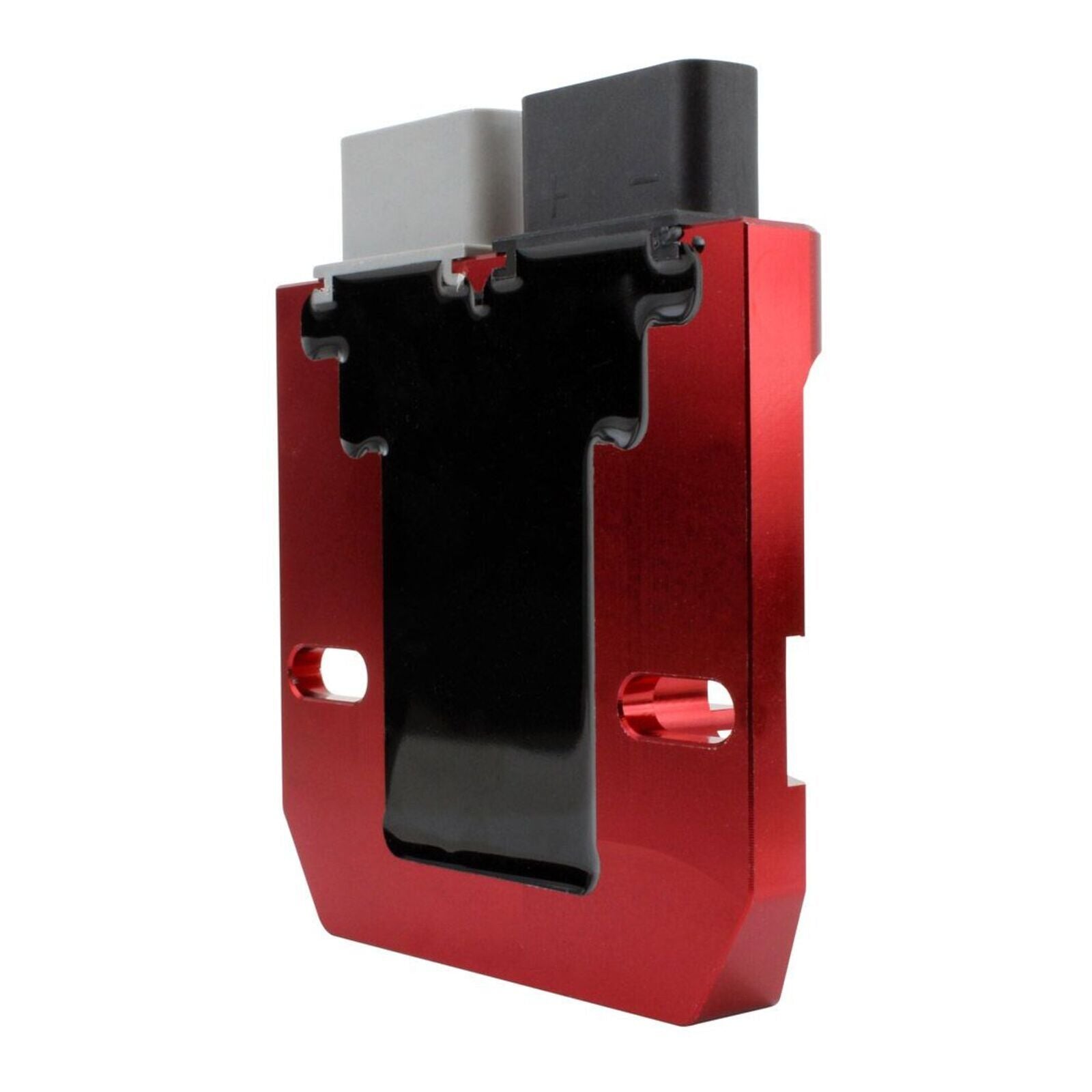

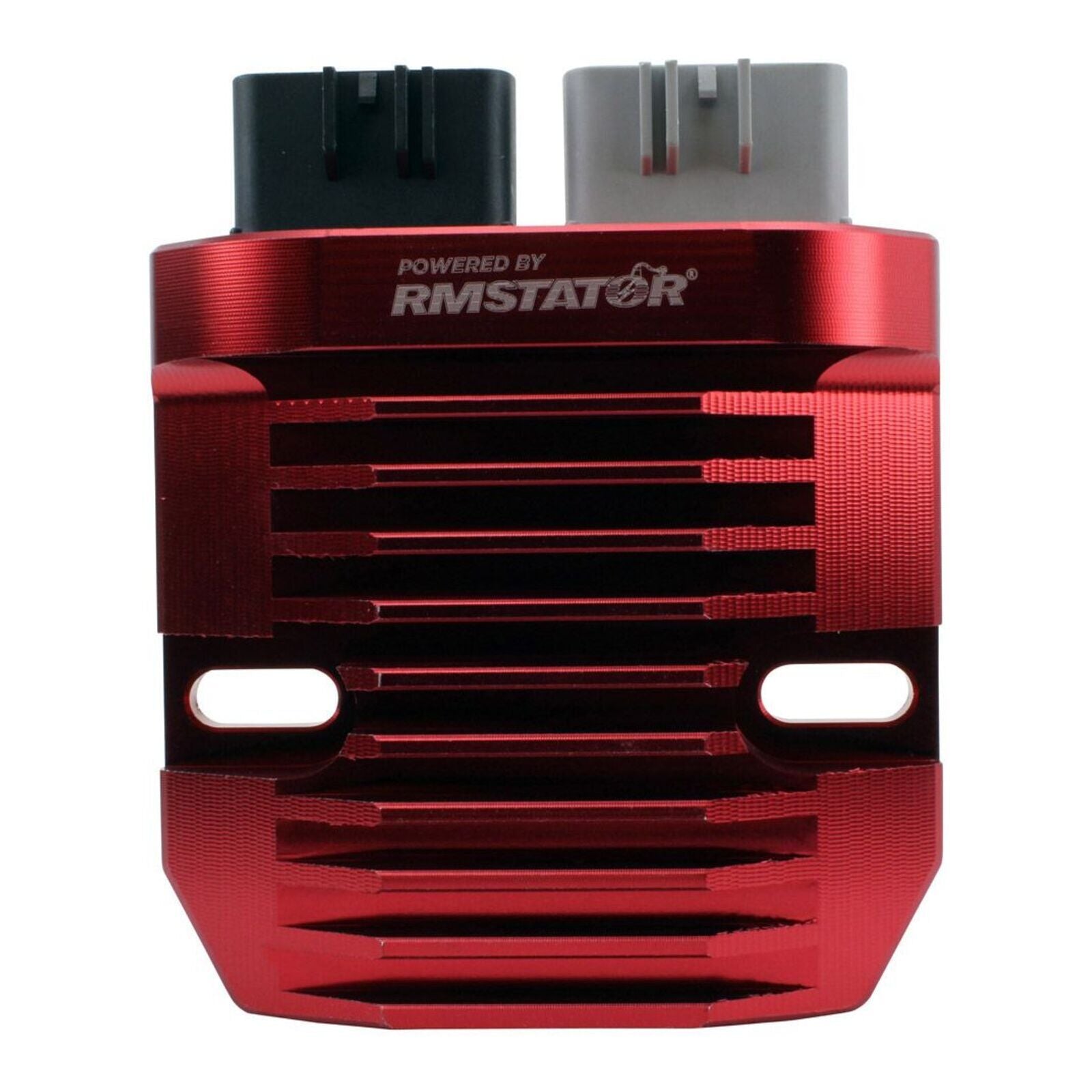

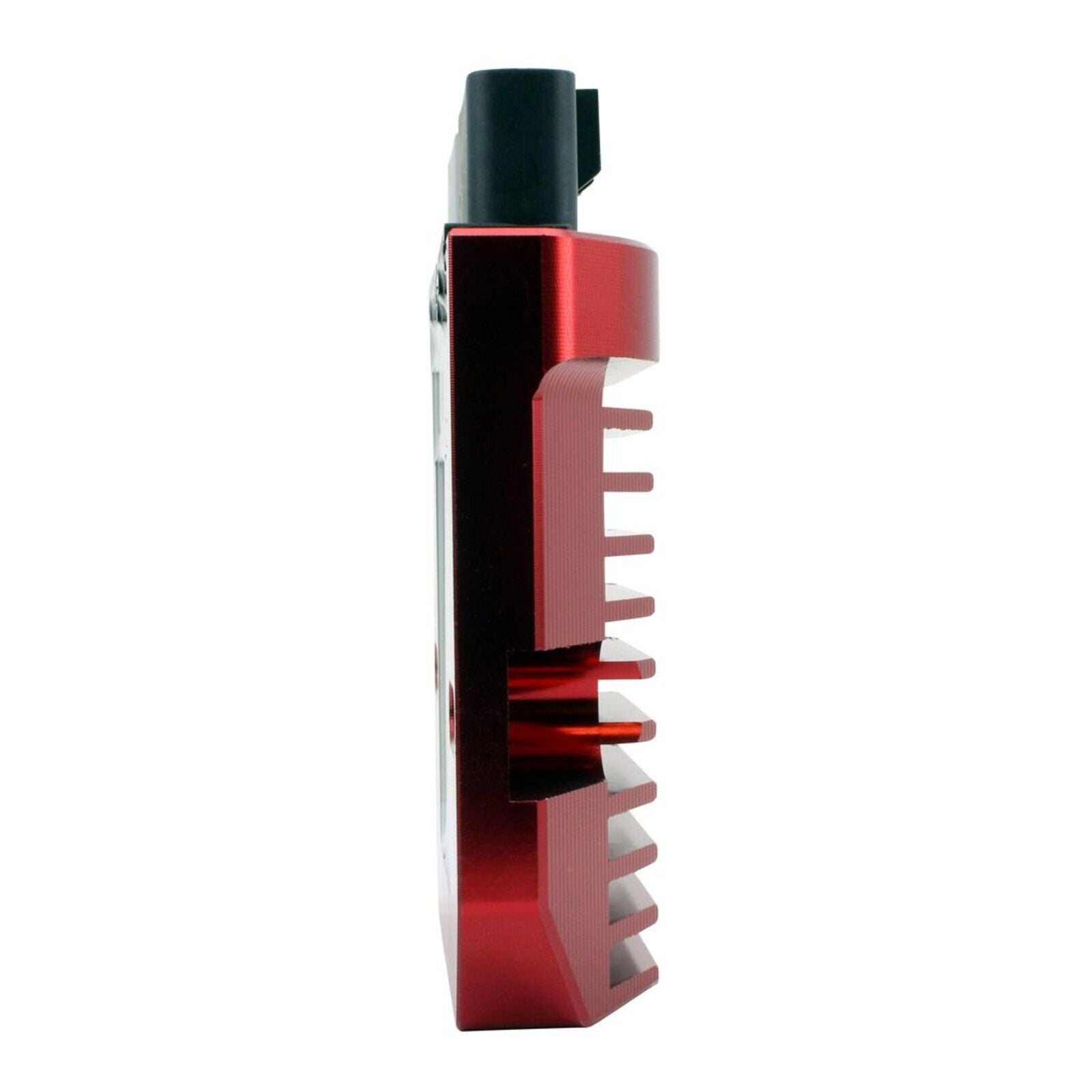

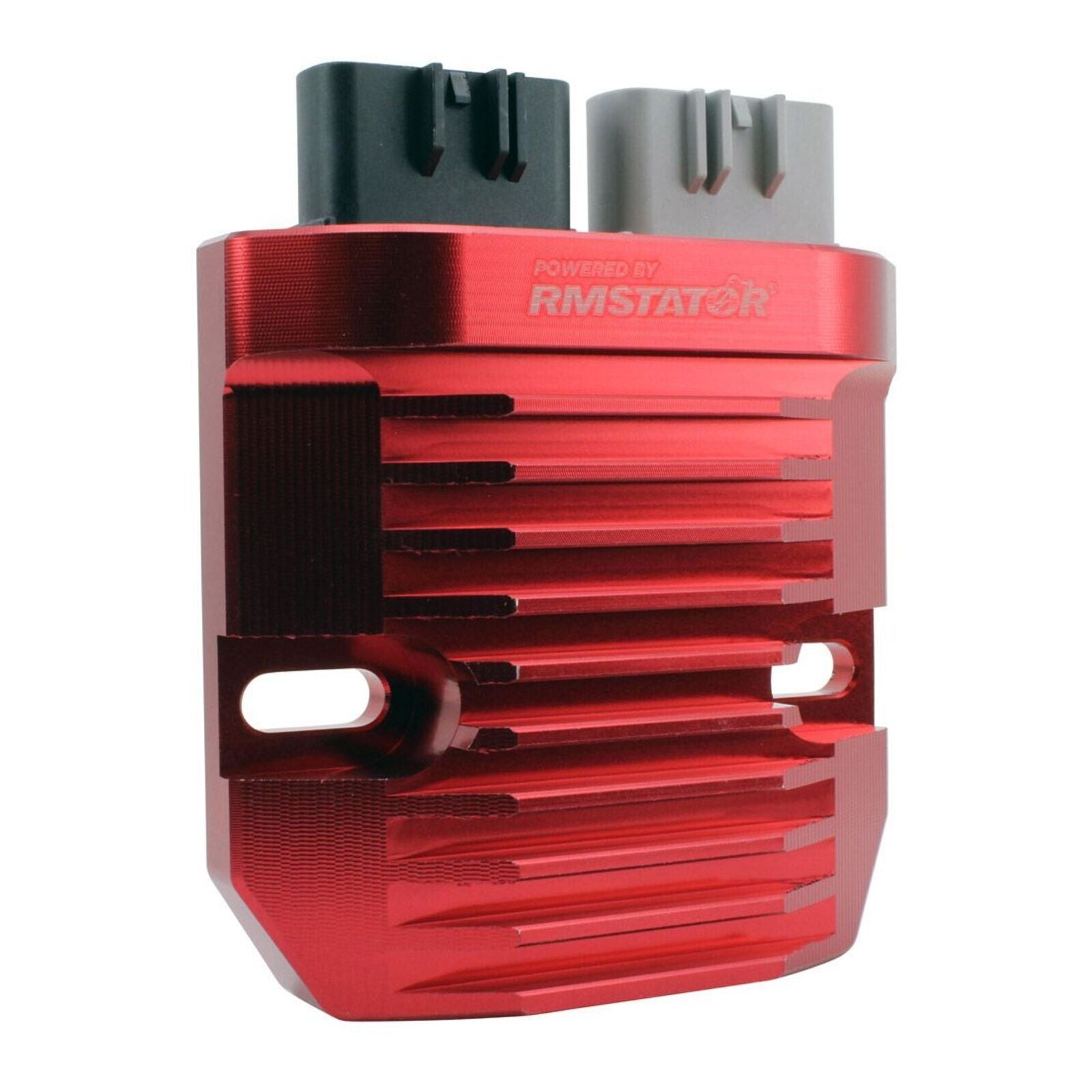

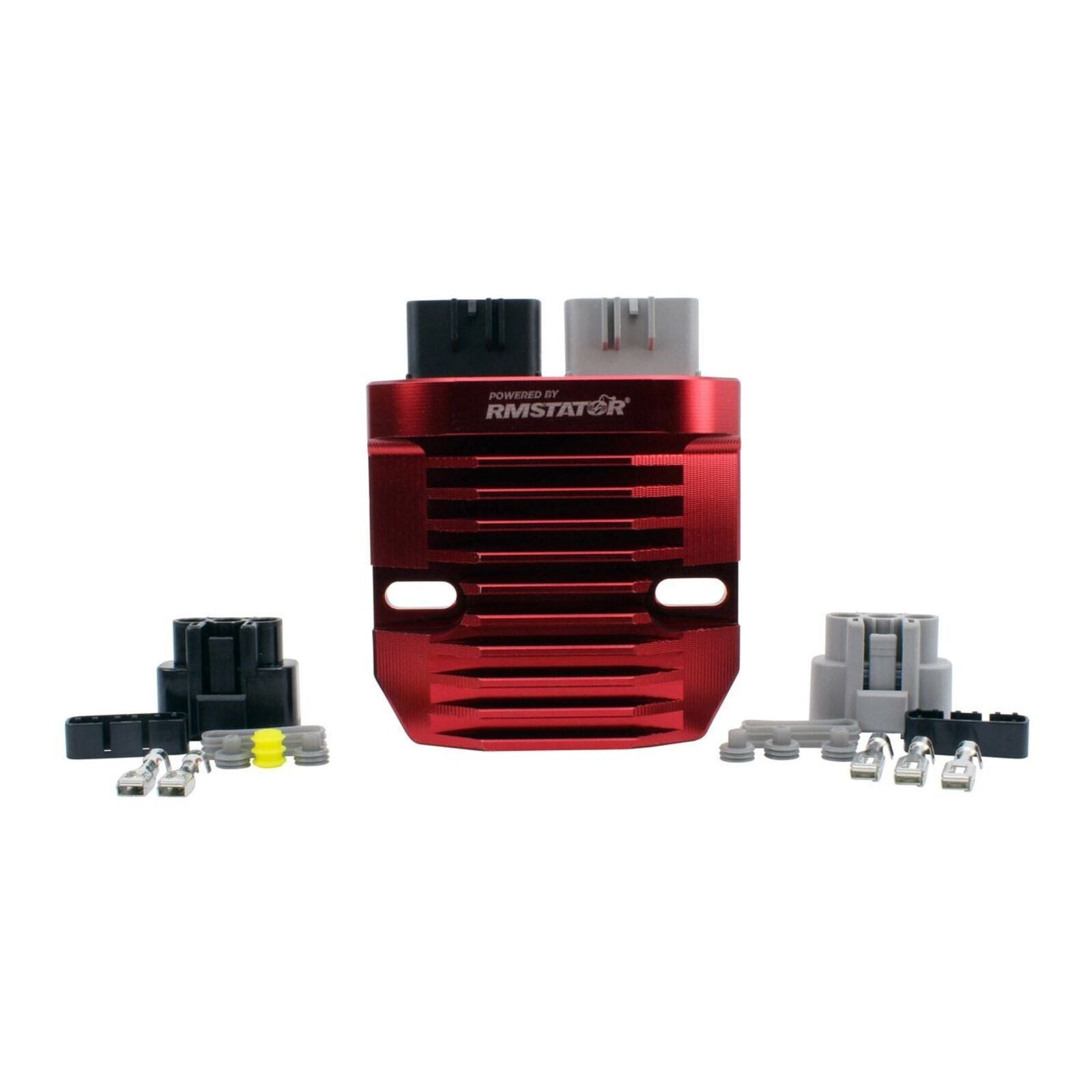

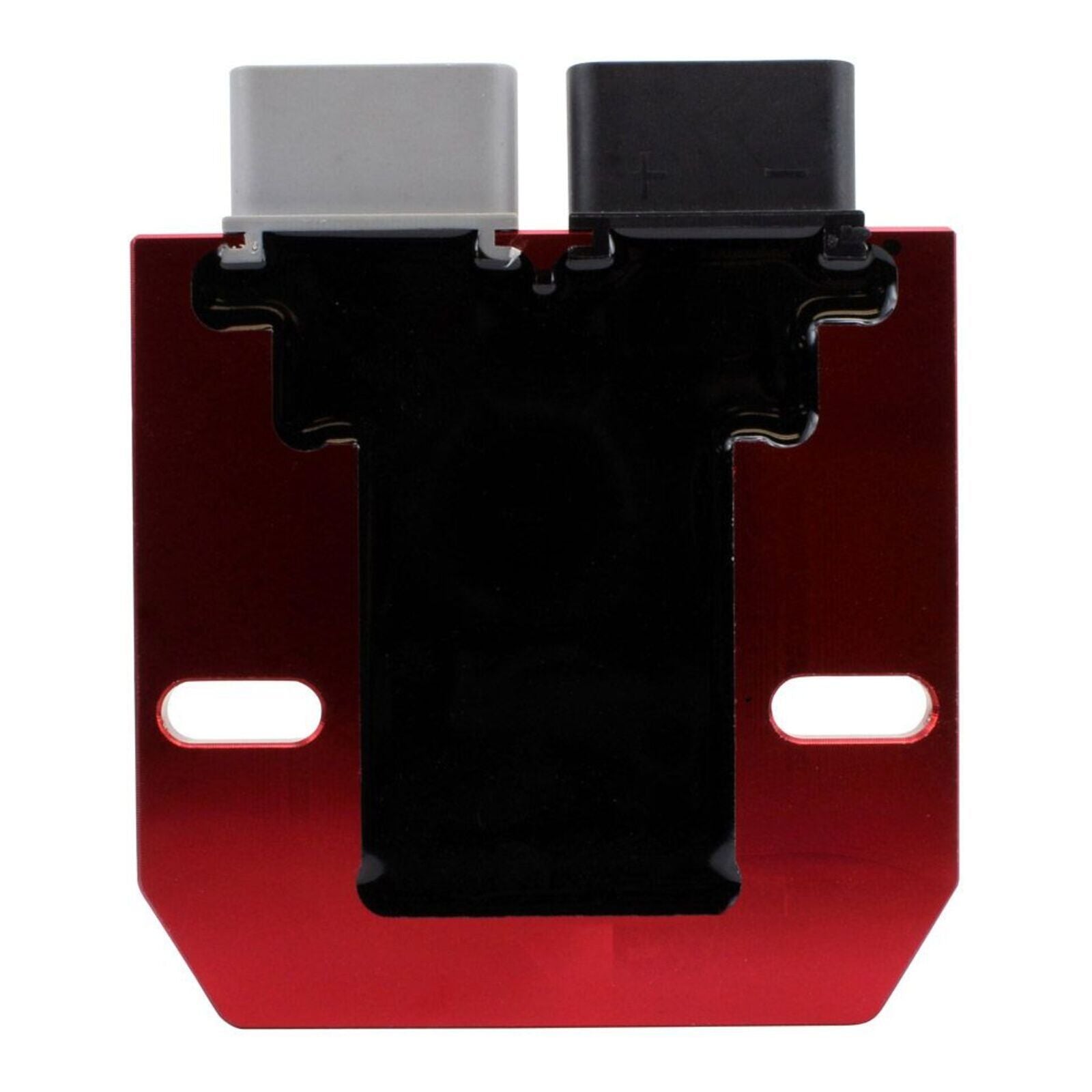

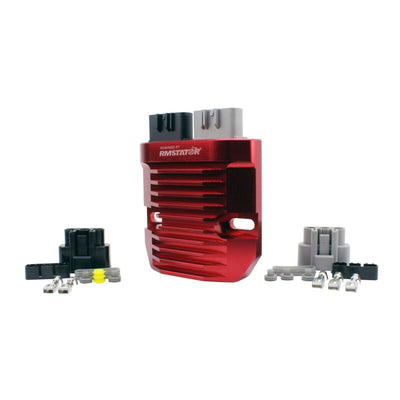

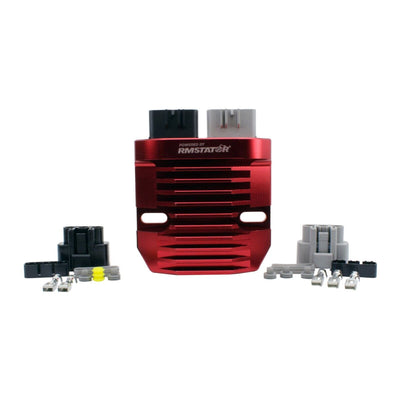

Red Machined Aluminum Mosfet Regulator:

• Dimensions:
  • Width: 103 mm
  • Length: 103 mm
  • Height: 28 mm
  • Fixation holes center to center: 80 mm
• Other specifications:

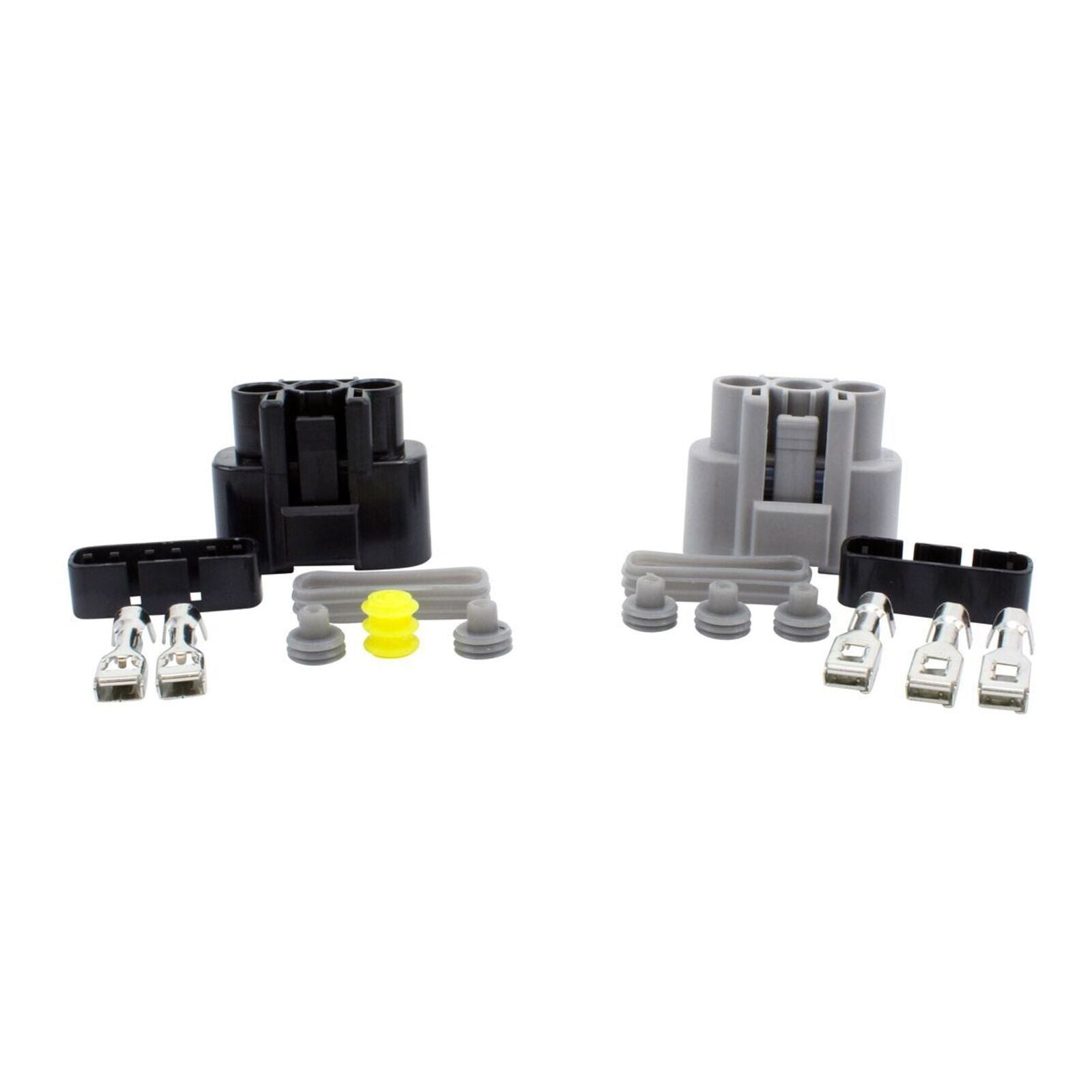

  • Number of plugs: 2
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

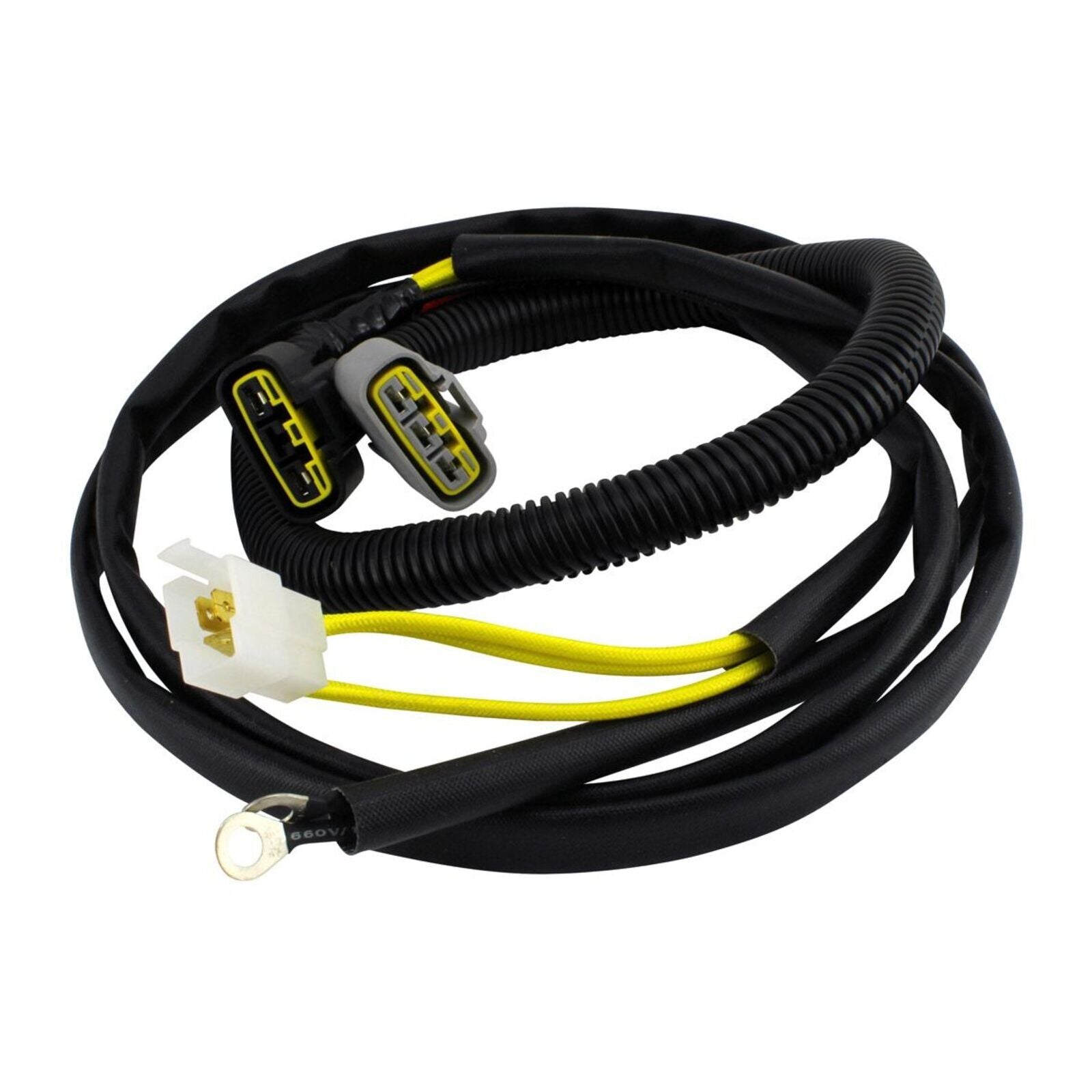

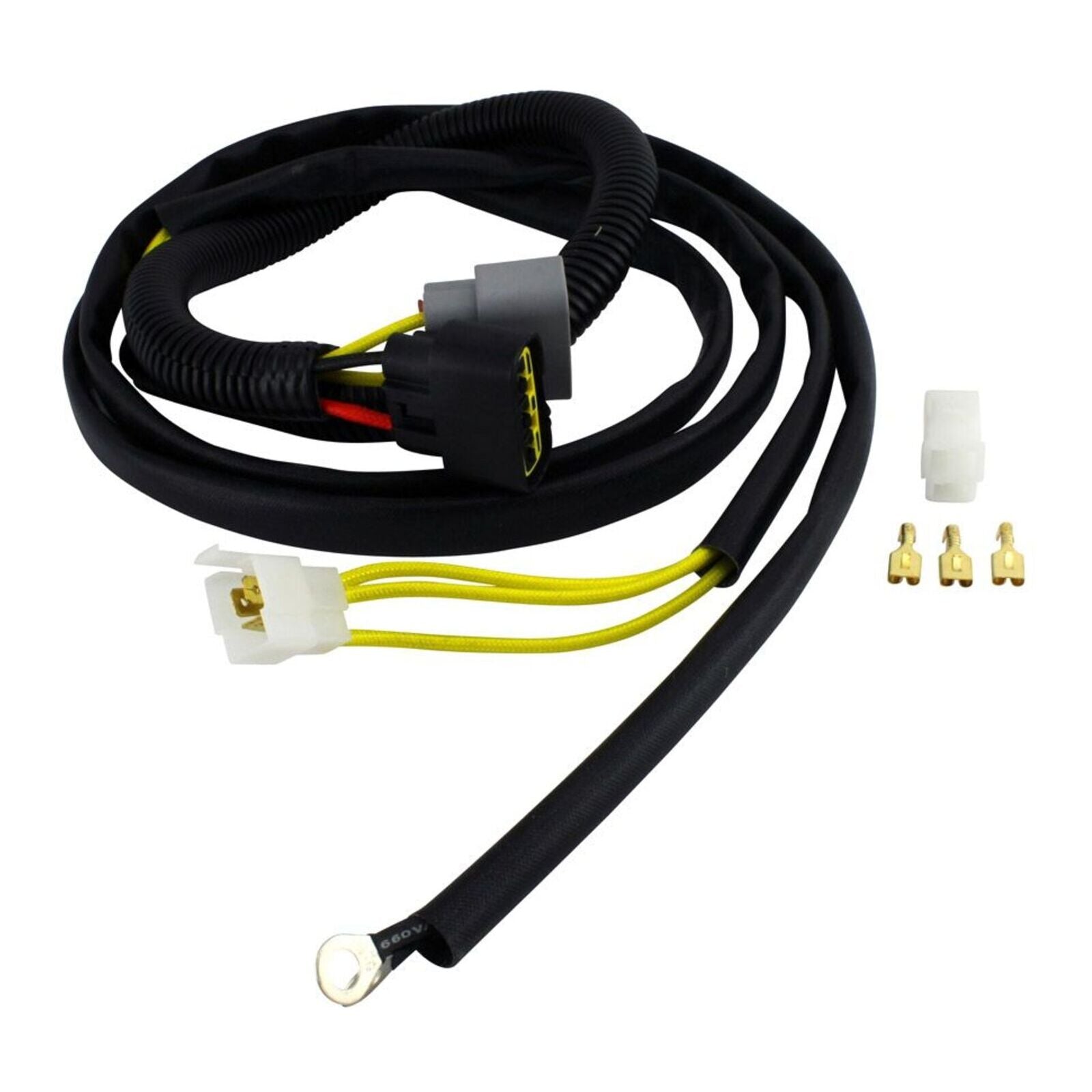

Polaris Surepower Module Regulator bypass Harness:

• Specifications:
  Wires length: 1000 mm
• Number of yellow wires: 3
• Number of red wires: 1
• Number of black wires: 1
• Number of plugs: 3
