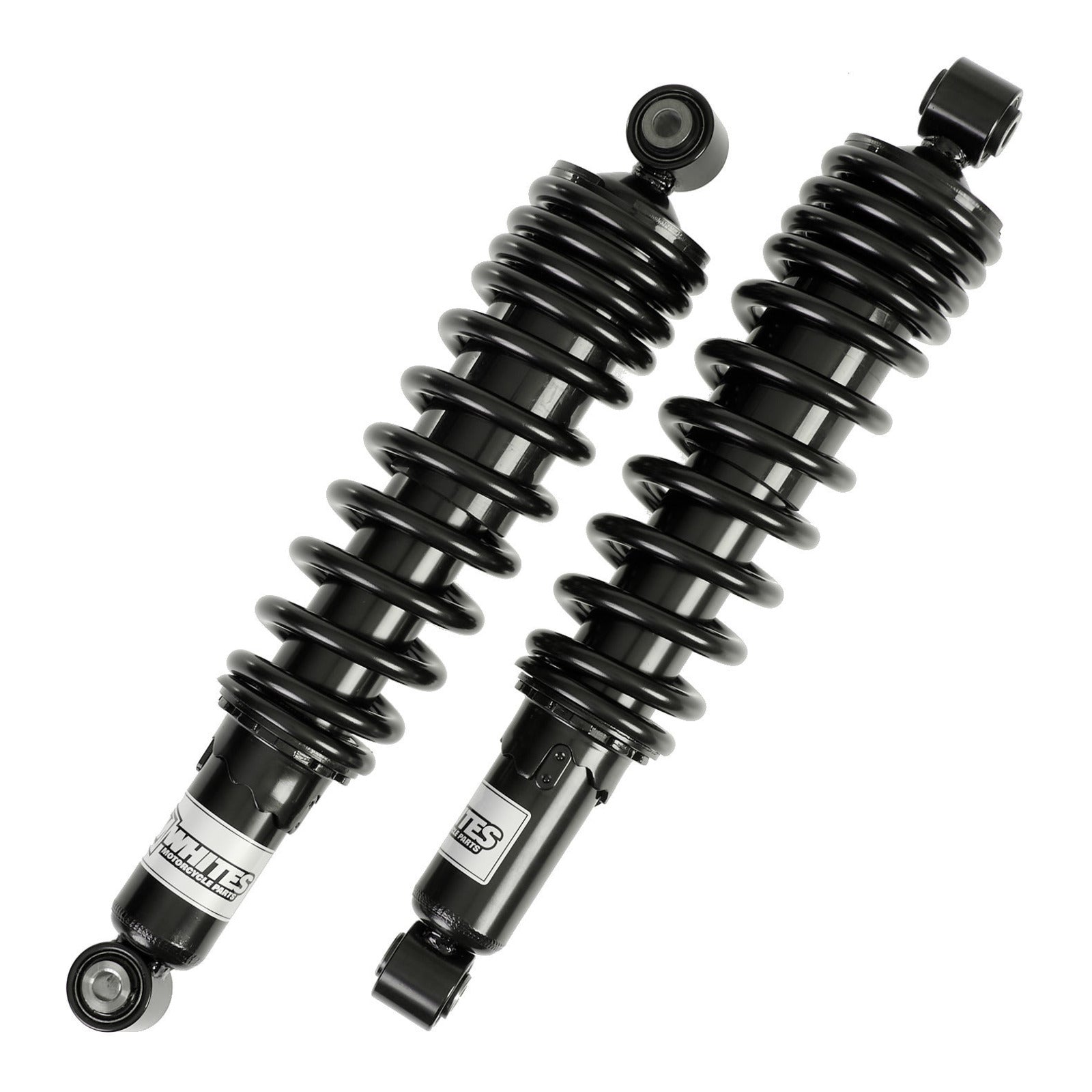

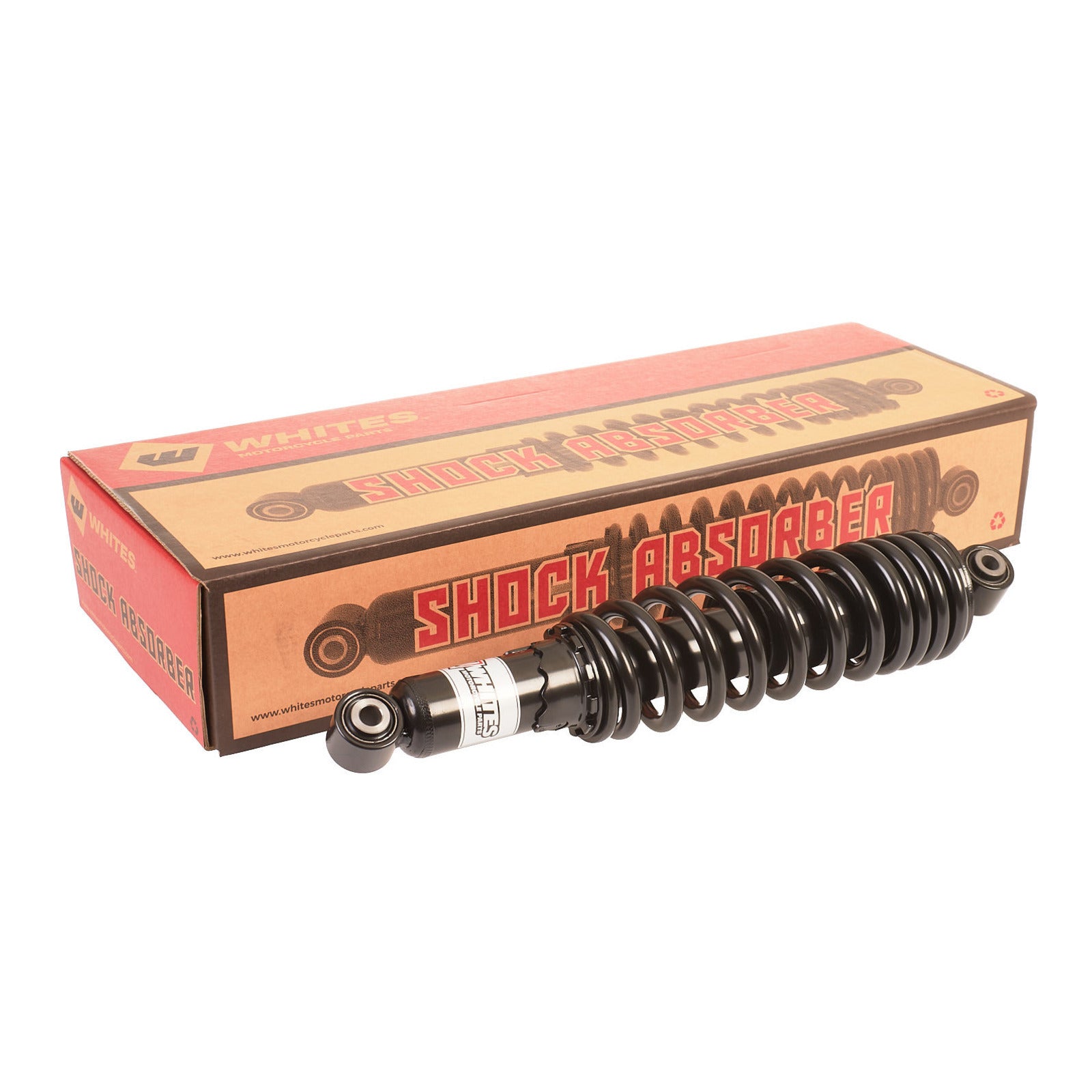

WMP' extensive range of ATV shocks are perfect for servicing your four-wheeled machine ATVs work and play in the harshest environments.

Sold in pairs and available for both the front and rear of most common ATVs. Manufactured with a steel construction for exceptional strength and durability your new shock will last the distance while the upgraded damping provides a comfortable ride.

Features:

• Fits 09-14 Yamaha Grizzly 550 - Front 07-13 Yamaha Grizzly 700 - Front
• Steel construction shock body.
• Upgraded damping provides an extra comfortable ride.
• Replaces OEM Part: 3B4-23350-01-00 3B4-23350-00-00 1HP-F3350-00-00 28P-23350-00-00
• Sold as a pair.

Dimensions:

• Extended Length: 360mm
• Compressed Length: 283mm
• Top Eyelet: 10x32mm
• Bottom Eyelet: 10x30mm
• Shaft OD: 12.5mm
• Damper Diameter: 38mm
• Spring OD: 62.6mm
• Spring Diameter: 8.9mm
